STARTECH Vga Video Extender Over Cat5 (st121 ST121UTP

Manufacture # Startech | Model # ST121UTP

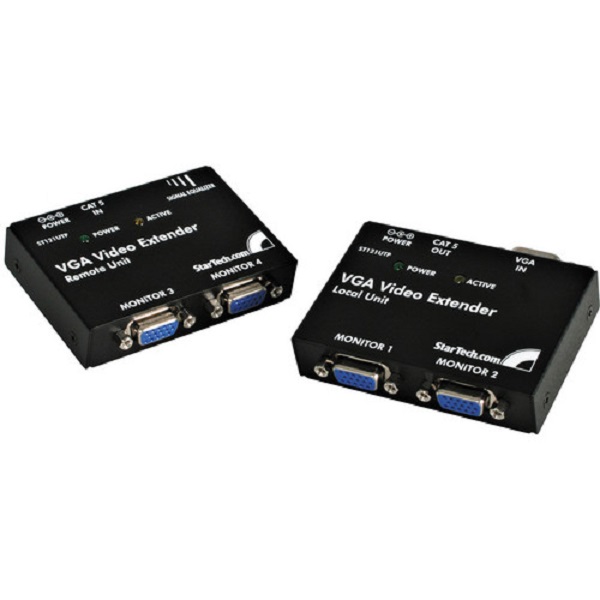

The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP is a bundled kit including both a local transmitter and a remote receiver unit, offering a complete solution for scenarios in which remote monitor displays are required.

The local unit features a single VGA input as well as 2 VGA outputs giving you the ability to view and split your source VGA signal to 2 independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features 2 additional VGA outputs giving you the freedom to display your VGA source on up to 4 monitors in total.

Features:

• Consists of 1 Base unit for the local display, and 1 Remote unit
• The remote display (up to 2 monitors can be connected at each location)
• Extender Over Cat5 st121 ST121UTP Extends video cables by up to 500' (150m)
• Uses standard Category 5 straight-wired, twisted-pair, network patch cable for reliable data transmission
• VGA extension through non-proprietary network cabling
• Included mounting brackets for a tidy and professional installation
• Free lifetime technical support

Overview:

• 2 - Local Unit Connectors: VGA (15 pin, High Density D-Sub)
• 1 - Local Unit Connectors: RJ-45 / VGA (15 pin, High Density D-Sub)
• 2 - Remote Unit Connectors: VGA (15 pin, High Density D-Sub)
• 1 - Remote Unit Connectors: RJ-45
• Ports: 1
• Cabling: Cat 5e UTP or better
• Audio: No

Manufacturer Warranty: 02 Years Limited Warranty
