STARTECH 10 Port Industrial Usb 3.0 Hub - Esd ST1030USBM

STARTECH 10 Port Industrial Usb 3.0 Hub - Esd ST1030USBM

Name: STARTECH 10 Port Industrial Usb 3.0 Hub - Esd ST1030USBM
Brand: StarTech
SKU: ST1030USBM
Price: 295 AUD
Availability: InStock

SKU : ST1030USBM

Brand : StarTech

Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days

Startech ST1030USBM, 10 Port Industrial Usb 3.0 Hub, Chipset Genesys Logic - GL3522, MTBF 119388 hours, USB 3.0 - 5 Gbit/s, Connector 10 - USB Type-A (9 pin) USB 3.0 (5 Gbps) Female, 1 - USB Type-B (9 pin) USB 3.0 Female, 1 - Terminal Block (2 Wire), LED 1 - Power (Green), Black, Steel. This TAA compliant 10-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing.

Ask a question about this product

$295.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Startech | Model # ST1030USBM

This TAA compliant 10-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Features:

Protects your connected devices with 15kV Air and 8kV Contact ESD protection
Surge protection of 350W on the downstream and upstream USB ports
Mount industrial USB hub where required with built-in mounting brackets or included DIN rails
Offers flexible, wide-range power inputs with a 7-24V DC terminal block
USB Battery Charging Specification 1.2 up to 2.4A on any port to a maximum of 50W total

Overview:

Cable Length: 80 in [2032 mm]
Color: Black
Form Factor: Industrial
Material: Steel

Manufacturer Warranty: 02 Years Limited Warranty

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Bus Type	USB 3.0
Chipset ID	Genesys Logic - GL3522
Fast-Charge Port(s)	Yes
Industry Standards	USB Battery Charging Specification Rev. 1.2 USB 3.0 - Backward compatible with USB 2.0/1.1
Interface	USB 3.0
Ports	10
USB-C Device Port(s)	No
USB-C Host Connection	No
ESD Protection	+/-15kV (Air) +/-8kV (Contact)
Maximum Data Transfer Rate	5 Gbps
MTBF	119388 hours
Surge Protection	350W on the DFP and UFP
Type and Rate	USB 3.0 - 5 Gbit/s
Connector Type(s)	10 - USB Type-A (9 pin) USB 3.0 (5 Gbps) Female 1 - USB Type-B (9 pin) USB 3.0 Female 1 - Terminal Block (2 Wire)
OS Compatibility	OS Independent; No additional drivers or software required
Note	If connected to a USB 2.0 host port, performance may be limited This product is intended for use with terminal block power only – Standard AC adapter not available System and Cable Requirements Host computer with an available USB 3.0 port
LED Indicators	1 - Power (Green)
Input Voltage	7 ~ 24 DC
Power Source	Terminal Block
Humidity	5%~95% RH (Non-condensing)
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
Cable Length	80 in [2032 mm]
Color	Black
Form Factor	Industrial
Material	Steel
Product Height	1.2 in [3.1 cm]
Product Length	7.8 in [19.8 cm]
Product Width	2.2 in [56 mm]
Weight of Product	12.6 oz [357 g]
Package Height	2.2 in [57 mm]
Package Length	9.7 in [24.6 cm]
Package Width	6.7 in [16.9 cm]
Shipping (Package) Weight	20.7 oz [587 g]

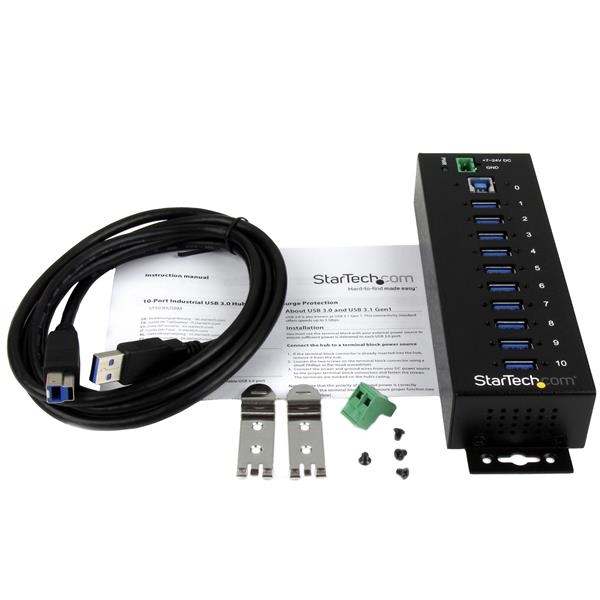

Included in Package	1 - 10-port industrial USB 3.0 hub 1 - USB 3.0 host cable 1 - DIN rail mounting kit 1 - terminal block (2 wire) 1 - instruction manual
