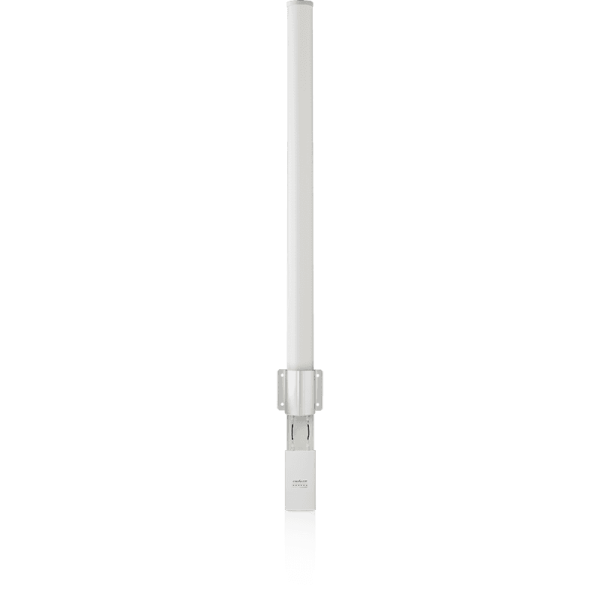

Ubiquiti AMO-2G13 2.4GHz 13dBi 2x2 Dual Polarity MIMO Omni Antenna

Name: Ubiquiti AMO-2G13 2.4GHz 13dBi 2x2 Dual Polarity MIMO Omni Antenna
Brand: Ubiquiti
SKU: AMO-2G13
Price: 442 AUD
Availability: InStock

SKU : AMO-2G13

Brand : Ubiquiti

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Frequency Range: 2.35 - 2.55 GHz, Gain: 13 dBi, Elevation Beamwidth: 7°, Downtilt: 2°, Wind Survivability: 200 km/h (125 mph), Wind Loading: 71.2 N @ 160 km/h (16 lbf @ 100 mph), Warranty: 01 Year, AMO-2G13.

Ask a question about this product

$442.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # AMO-2G13

The AirMAX Omni is a carrier class 2 x 2 dual polarity MIMO Omni directional antenna that was designed to seamlessly integrate with RocketM radios. Pair the RocketM's radio with the AirMAX Omni's reach to create a powerful, 360-degree omni directional base station. This seamless integration gives network architects unparalleled flexibility and convenience.

Overview:

Frequency Range: 2.35 - 2.55 GHz
Gain: 13 dBi
Elevation Beamwidth: 7°
Downtilt: 2°
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 71.2 N @ 160 km/h (16 lbf @ 100 mph)

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Dimensions	1390 x 122 x 105 mm (54.2 x 4.8 x 4.1")
Weight	2.4 kg (5.3 lb)
Frequency Range	2.35 - 2.55 GHz
Gain	13 dBi
Elevation Beamwidth	7°
Max. VSWR	1.7:1
Downtilt	2°
Wind Survivability	200 km/h (125 mph)
Wind Loading	71.2 N @ 160 km/h (16 lbf @ 100 mph)
Polarization	Dual-Linear
Cross-pol Isolation	25 dB min.
ETSI Specification	EN 302 326 DN2 E
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
