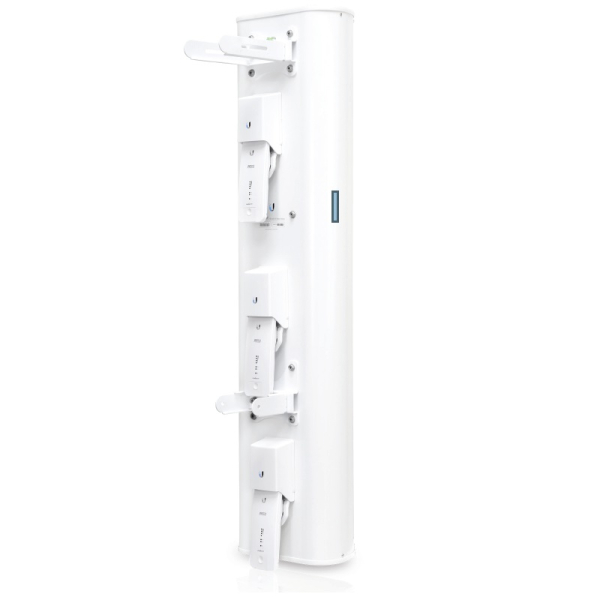

Ubiquiti Networks AP-5AC-90-HD 5GHz 22dBi Sector Antenna

Name: Ubiquiti Networks AP-5AC-90-HD 5GHz 22dBi Sector Antenna
Brand: Ubiquiti
SKU: AP-5AC-90-HD
Price: 781 AUD
Availability: InStock

SKU : AP-5AC-90-HD

Brand : Ubiquiti

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Frequency Range: 5.15 - 5.85 GHz, Gain: 22 dBi, Elevation Beamwidth: 8°, Max. VSWR: 1.75:1, Wind Survivability: 200 km/h (125 mph), Warranty: 01 Year, AP-5AC-90-HD.

Ask a question about this product

$781.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # AP-5AC-90-HD

Ubiquiti Networks introduces an innovative sector antenna for your Point-to-MultiPoint (PtMP) applications, the airPrism® 5 GHz 3x30° HD Sector Antenna. The airPrism antenna features significant advances in noise isolation and beam performance to complement the Rocket®5ac Prism™ radios (not included) for co-location deployments.

Features:

Powerful Performance for High-Density Areas
3 x 30° Beamwidth Coverage in a MultiPoint Network
Efficient Footprint for Reduced Tower Costs

Overview:

Frequency Range: 5.15 - 5.85 GHz
Gain: 22 dBi
Elevation Beamwidth: 8°
Max. VSWR: 1.75:1
Wind Survivability: 200 km/h (125 mph)

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Dimensions	With Mount: 322.6 x 201.5 x 1300 mm (12.7 x 7.93 x 51.18")
Weight	With Mount: 13.1 kg (28.9 lb)
Frequency Range	5.15 - 5.85 GHz
Gain	22 dBi
HPOL Beamwidth	3 x 30° (6 dB)
VPOL Beamwidth	3 x 30° (6 dB)
Elevation Beamwidth	8°
Electrical Downtilt	2°
Polarization	Dual-Linear
Max. VSWR	1.75:1
Wind Survivability	200 km/h (125 mph)
Wind Loading	534 N @ 200 km/h (120 lbf @ 125 mph)
Interfaces	(6) RP-SMA Connectors (Weatherproof)
Compatible Radio	Rocket5ac Prism
Mounting	Pole Mount (Kit Included)
ETSI Specification	EN 302 326 DN2
Certifications	CE, FCC, IC
