Vogels PFW 6810 55-80 Display Tilt Wall Mount

Vogels PFW 6810 55"-80" Display Tilt Wall Mount

Name: Vogels PFW 6810 55-80 Display Tilt Wall Mount
Brand: VOGELS MOUNTS
SKU: PFW 6810
Price: 212 AUD
Availability: InStock

SKU : PFW 6810

Brand : VOGELS MOUNTS

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Colour: Black, Series: PFW 6000 Series, Product group: Display mount tilt, TÜV certified: Yes, Warranty: 01 Year Limited, PFW 6810.

Ask a question about this product

$212.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Vogels Mounts | Model # PFW 6810

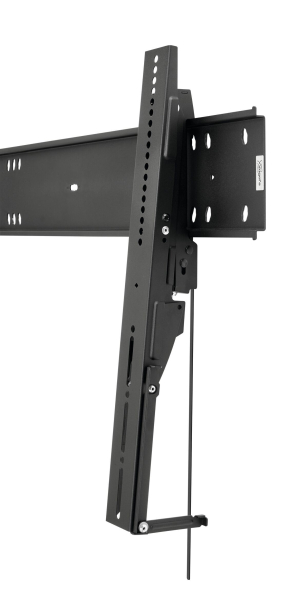

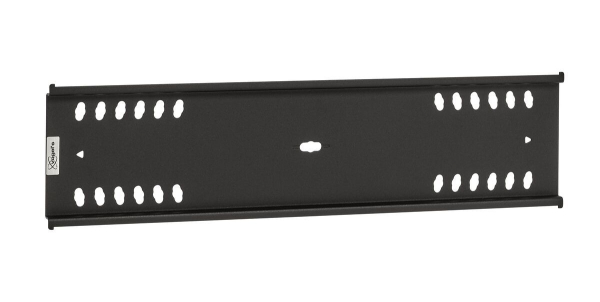

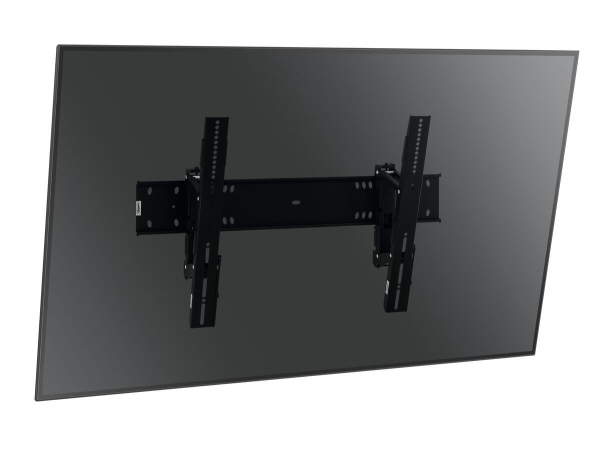

The PFW 6810 is a sturdy and at the same time elegant tilt wall mount. It features an aesthetically integrated lock on top of the ability to tilt up to 15°. The mount can hold displays from 55 to 80 inch, weighing up to 75 kg

Features:

Easy levelling and installation
For the heaviest displays
Self-centering display bolts

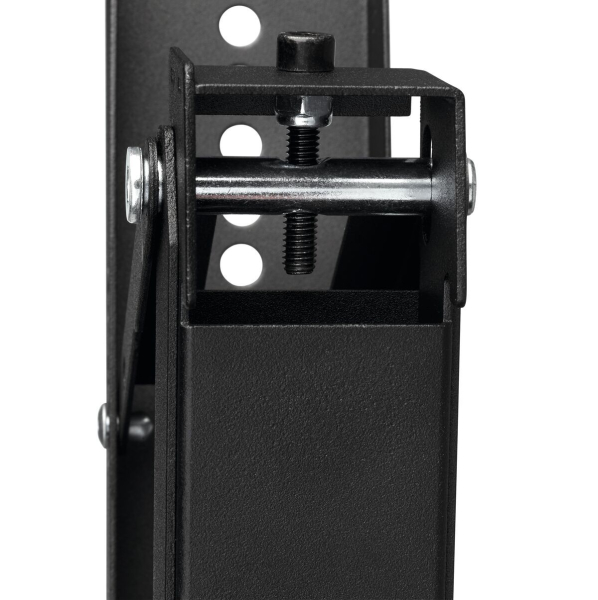

Integrated lock
Locked service position

Overview:

Colour: Black
Series: PFW 6000 Series
Product group: Display mount tilt
TÜV certified: Yes

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Series	PFW 6000 Series
Product group	Display mount tilt
Colour	Black
TÜV certified	Yes
Min. screen size (inch)	55
Max. screen size (inch)	80
Max. weight load (kg)	75
Max. weight load (lbs)	165.35
Tilt	Tilt up to 15°
Orientation	Landscape
Hole pattern (VESA)	75 mm x 75 mm 100 mm x 100 mm 100 mm x 200 mm 200 mm x 100 mm 200 mm x 200 mm 300 mm x 200 mm 300 mm x 300 mm 400 mm x 200 mm 400 mm x 300 mm 400 mm x 400 mm 500 mm x 200 mm 500 mm x 300 mm 500 mm x 400 mm 600 mm x 200 mm 600 mm x 300 mm 600 mm x 400 mm 700 mm x 400 mm 800 mm x 400 mm
Lock options	Lock included / integrated
Levelling function	Post-installation horizontal levelling
Fischer inside	Yes
Service position	Yes
Min. horizontal hole pattern (mm)	75
Max. horizontal hole pattern (mm)	800
Min. vertical hole pattern (mm)	75
Max. vertical hole pattern (mm)	400
Max. distance to the wall (mm)	52
Min. distance to the wall (inch)	2.05
