Vogels PFW6880 37-65 Flat Panel Pop-Out Video Wall Module

Vogels PFW6880 37"-65" Flat Panel Pop-Out Video Wall Module

Name: Vogels PFW6880 37-65 Flat Panel Pop-Out Video Wall Module
Brand: VOGELS MOUNTS
SKU: PFW 6880
Price: 811 AUD
Availability: InStock

SKU : PFW 6880

Brand : VOGELS MOUNTS

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Colour: Black, Series: PFW 6000 Series Pop-out & Turn, Product group: Video wall pop out, TÜV certified: Yes, Suitable for screen type: LCD, Warranty: 01 Year Limited, PFW 6880.

Ask a question about this product

$811.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Vogels Mounts | Model # PFW 6880

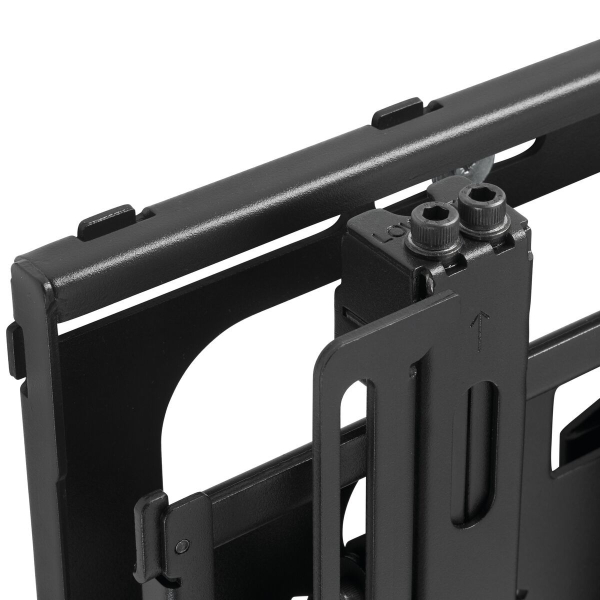

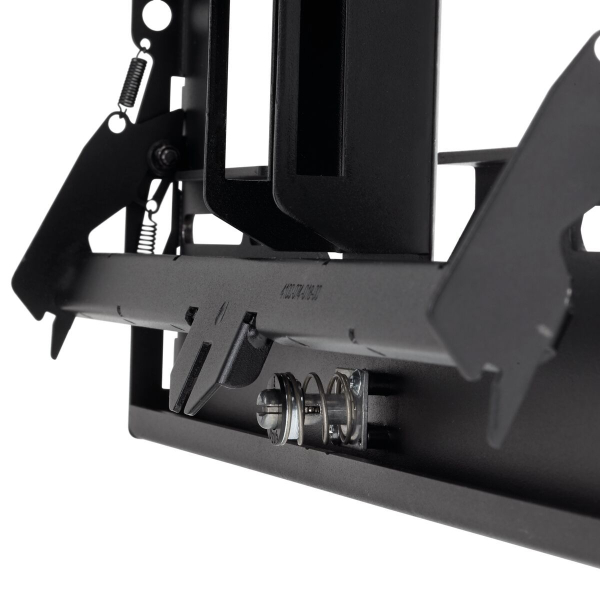

PFW 6880 is a slim video wall pop- out mount with a distance between display and wall of only 50mm. It features a spring-loaded push to open release, by gently pushing on the display.
Optional dedicated spacers dramatically reduce installation time. Spacers are available for the most used video wall displays or monitors.

Features:

Designed for displays from 37 to 65 inches up to 45.5kg Max
200 x 200mm & 400-600 (VxH) Max vertical hole pattern
50mm Min. distance to the wall
Pre-assembled; Suitable for mounting in recess
Easy to install; Fine tuning possible after installation

Overview:

Colour: Black
Series: PFW 6000 Series Pop-out & Turn
Product group: Video wall pop out
TÜV certified: Yes
Suitable for screen type: LCD

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Series	PFW 6000 Series Pop-out & Turn
Product group	Video wall pop out
Colour	Black
TÜV certified	Yes
Suitable for screen type	LCD
Min. screen size (inch)	37
Max. screen size (inch)	65
Max. weight load (kg)	45.5
Max. weight load (lbs)	100.31
Orientation	Landscape
Hole pattern (VESA)	200 mm x 200 mm 300 mm x 200 mm 300 mm x 300 mm 400 mm x 200 mm 400 mm x 300 mm 400 mm x 400 mm 500 mm x 200 mm 500 mm x 300 mm 500 mm x 400 mm 600 mm x 200 mm 600 mm x 300 mm 600 mm x 400 mm
Service position	Yes
Min. horizontal hole pattern (mm)	200
Max. horizontal hole pattern (mm)	600
Min. vertical hole pattern (mm)	200
Max. vertical hole pattern (mm)	400
Min. distance to the wall (mm)	51
Min. distance to the wall (inch)	2.01
Max. distance to the wall (mm)	260
