Vogels PFW6815 Super Flat Portrait Wall Mount

Vogels PFW6815 Super Flat Portrait Wall Mount

Name: Vogels PFW6815 Super Flat Portrait Wall Mount
Brand: VOGELS MOUNTS
SKU: PFW 6815
Price: 194 AUD
Availability: InStock

SKU : PFW 6815

Brand : VOGELS MOUNTS

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Colour: Black, Series: PFW 6000 Series, Product group: Display mount fixed, TÜV certified: Yes, Warranty: 01 Year Limited, PFW 6815.

Ask a question about this product

$194.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Vogels Mounts | Model # PFW 6815

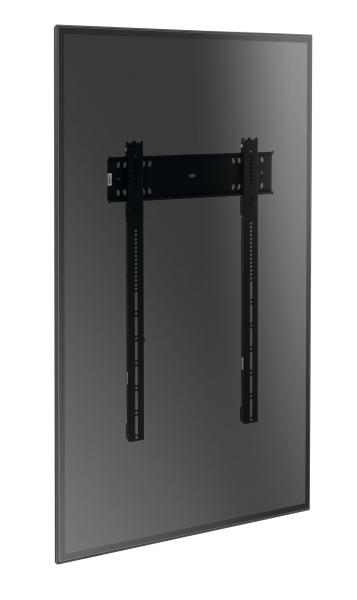

The PFW 6815 is a sturdy and at the same time elegant fixed wall mount for portrait mounting. It features an aesthetically integrated lock whilst maintaining a depth of only 35 mm. The mount can hold displays from 43 to 100 inch, weighing up to 100 kg

Features:

Easy levelling and installation
For the heaviest displays
Self-centering display bolts
Integrated lock
Locked service position

Overview:

Colour: Black
Series: PFW 6000 Series
Product group: Display mount fixed
TÜV certified: Yes

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Series	PFW 6000 Series
Product group	Display mount fixed
Colour	Black
TÜV certified	Yes
Min. screen size (inch)	43
Max. screen size (inch)	100
Max. weight load (kg)	100
Max. weight load (lbs)	220.46
Orientation	Portrait
Hole pattern (VESA)	75 mm x 75 mm 100 mm x 100 mm 100 mm x 200 mm 200 mm x 100 mm 200 mm x 200 mm 300 mm x 200 mm 300 mm x 300 mm 400 mm x 200 mm 400 mm x 300 mm 400 mm x 400 mm 400 mm x 500 mm 400 mm x 600 mm 400 mm x 700 mm 400 mm x 800 mm
Levelling function	Post-installation horizontal levelling
Fischer inside	Yes
Service position	Yes
Min. horizontal hole pattern (mm)	75
Max. horizontal hole pattern (mm)	400
Min. vertical hole pattern (mm)	75
Max. vertical hole pattern (mm)	800
Max. distance to the wall (mm)	35
