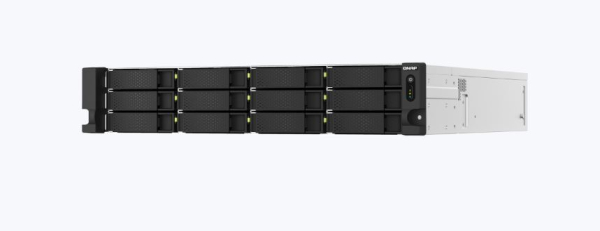

QNAP 18-Bay Xeon E-2334 16GB 2U Rackmount NAS TS-h1887XU-RP-E2334-16G

SKU : TS-h1887XU-RP-E2334-16G
Brand : QNAP
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
CPU: Intel Xeon E-2334 4C 8T 3.4GHz, up to 4.8GHz, System Memory: 16 GB ECC DDR4 (1 x 16 GB), M.2 Slot: Optional via a QM2 PCIe adapter, USB 3.2 Gen 2 (10Gbps) Port: 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps, Form Factor: 2U Rackmount, Warranty: 02 Years, TS-h1887XU-RP-E2334-16G.
Ask a question about this product
$7,426.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # QNAP | Model # TS-h1887XU-RP-E2334-16G



The high-capacity TS-h1887XU-RP is powered by a next-gen Intel Xeon E-2300 series processor, supports up to 128 GB DDR4 ECC memory, and provides an HDD/SSD hybrid storage architecture that balances performance and cost to deliver reliable server-grade performance. Running the ZFS-based QuTS hero operating system, the TS-h1887XU-RP emphasizes data integrity with inline data deduplication, near-limitless snapshots, real-time SnapSync, and QSAL (QNAP SSD Antiwear Leveling) – providing an ideal storage solution that meets today’s business requirements for file servers, virtualization servers, VDI, and backup/restore.



Features:

  • Combines the advantages of high-capacity HDD and high-performance SSD. Supports SSD caching to boost IOPS performance.
  • Dual 10GBASE-T and dual 2.5GbE high-speed connectivity enhances virtualization, intensive file access, and large backup/restoration tasks.
  • Install 10/25GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
  • Supports virtualization storage and hosting virtual machines and containerized apps.
  • Optimized for business-class backup, including Google Workspace and Microsoft 365 data, and VMware and Hyper-V virtual machines.
  • Realizes hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.



Overview:

  • CPU: Intel Xeon E-2334 4C 8T 3.4GHz, up to 4.8GHz
  • System Memory: 16 GB ECC DDR4 (1 x 16 GB)
  • M.2 Slot: Optional via a QM2 PCIe adapter
  • USB 3.2 Gen 2 (10Gbps) Port: 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
  • Form Factor: 2U Rackmount



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

CPU Intel Xeon E-2334 4C 8T 3.4GHz, up to 4.8GHz
CPU Architecture 64-bit x86
Graphic Processors Optional via a PCIe adapter
Floating Point Unit Yes
Encryption Engine Yes(AES-NI)
System Memory 16 GB ECC DDR4 (1 x 16 GB)
Maximum Memory 128GB (4 x 32 GB)
Memory Slot 4 x ECC UDIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 18 (12 x 3.5-inch SATA + 6 x 2.5-inch SATA)
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
2.5-inch bays:
2.5-inch SATA solid state drives
Hot-swappable Yes
M.2 Slot Optional via a QM2 PCIe adapter
SSD Cache Acceleration Support Yes
GPU pass-through Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M)
10 Gigabit Ethernet Port 2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
25 Gigabit Ethernet Port Optional via a PCIe adapter
Wake on LAN (WOL) Yes
PCIe Slot 3 (2 x Gen4 x4 +1 x Gen 4 x8)
USB 3.2 Gen 2 (10Gbps) Port 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
HDMI Output Optional via a PCIe adapter
Form Factor 2U Rackmount
LED Indicators Status (Green/Red)
LAN (Green)
USB (Blue)
HDD status (Green/Red)
Buttons Power, Reset
Dimensions (HxWxD) 88.6 × 432 × 511.2 mm
Weight (Net) 13 kg
Weight (Gross) 19 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5~95% RH non-condensing, wet bulb: 27 C (80.6 F)
Power Supply Unit 2 x 550W PSU
Power Consumption: HDD Sleep Mode 118.77 W
Power Consumption: Operating Mode, Typical 148.94 W
Fan 4 x 60mm, 12VDC
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 11000
