QNAP TS-664 Celeron Quad-core 8GB RAM 6-Bay NAS TS-664-8G

SKU : TS-664-8G
Brand : QNAP
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz, Graphic Processors: Intel UHD Graphics, System Memory: 8 GB RAM, M.2 Slot: 2 x M.2 2280 PCIe Gen 3 x1, Form Factor: Tower, Warranty: 02 Years, TS-664-8G.
Ask a question about this product
$1,392.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # QNAP | Model # TS-664-8G

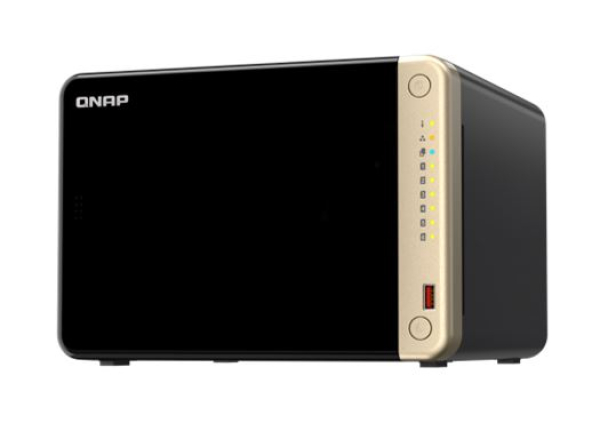

TS-664 is a compact 6-bay NAS with superior performance. Supporting up to 110 TB storage and 4 TB M.2 SSD caching at an affordable price, the TS-664 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.



Features:

  • TS-664 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
  • Perform additional tasks, stream more media, and have more services running with an Intel quad-core processor optimized for multitasking.
  • Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices.
  • Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,644 MB/s transfer speed.
  • Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices.
  • If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots.



Overview:

  • CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • M.2 Slot: 2 x M.2 2280 PCIe Gen 3 x1
  • Form Factor: Tower



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

CPU Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture 64-bit x86
Graphic Processors Intel UHD Graphics
Floating Point Unit Yes
Encryption Engine Yes (AES-NI)
Hardware-accelerated Transcoding Yes
System Memory 8 GB RAM
Maximum Memory 8GB
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 6 x 3.5-inch SATA 6Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable Yes
M.2 Slot 2 x M.2 2280 PCIe Gen 3 x1
SSD Cache Acceleration Support Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via PCIe expansion card
10 Gigabit Ethernet Port Optional via PCIe expansion card
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 1, Slot 1: PCIe Gen 3 x2
USB 2.0 port 2
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A
IR Sensor Yes (Optional QNAP RM-IR004 remote control)
HDMI Output 1, HDMI 2.1 (up to 4096 x 2160 @ 60Hz)
Form Factor Tower
LED Indicators Power/Status, LAN, USB, HDD1-6
Buttons Power, USB copy, Reset
Dimensions (HxWxD) 171 × 235 × 226 mm
Weight (Net) 2.9 kg
Weight (Gross) 4.56 kg
Operating Temperature 0 ~ 40 C (32 F ~ 104 F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27 C (80.6 F)
Power Supply Unit 120W adapter, 100-240V
Power Consumption: HDD Sleep Mode 23.22 W
Power Consumption: Operating Mode, Typical 44.02 W
Fan 2 x 90mm, 12VDC
System Warning Buzzer
Kensington Security Slot Yes
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 1500
