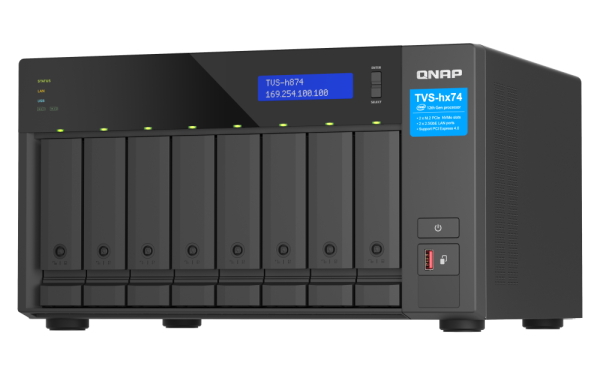

QNAP TVS-H874 3.5in SATA Intel Core i5 12400 6 Core 32GB (2x16GB) DDR4 Tower TVS-h874-i5-32G

SKU : TVS-h874-i5-32G
Brand : QNAP
Availablity : Online Only, In Stock
Ships within 1 and 3 days from our Seven Hills, NSW warehouse or Pickup in 3 to 4 days
CPU: Intel Core i5-12400 6-core/12-thread Processor, burst up to 4.4 GHz, System Memory: 32 GB SODIMM DDR4 (2 x 16 GB), M.2 Slot: 2 x M.2 2280 PCIe Gen 4 x4 slots, Form Factor: Tower, Warranty: 02 Years, TVS-h874-i5-32G.
Ask a question about this product
$4,805.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # QNAP | Model # TVS-h874-i5-32G



With an Intel Core multicore-core Processor to support the ZFS-based QuTS hero operating system, the TVS-h874 SMB NAS ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and SSD optimization. Whether for mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications, the TVS-h874 delivers an ideal NAS solution. The high-performance TVS-h874 provides PCIe Gen 4 (up to twice the transmission speed of Gen 3) expandability, M.2 NVMe SSD caching, and 2.5GbE/10GbE connectivity for high-speed virtualization network environments.



Features:

  • Enable NVMe SSD caching or Edge TPU empowered AI image recognition.
  • PCIe slots allow for installing 2.5/5/10/25GbE adapters, QM2 cards, or entry-level graphics cards to increase application performance.
  • Host multiple virtual machines and containers with optimized resource utilization.
  • Directly view creative works on an HDMI display. Enjoy smooth full HD media playback and real-time transcoding.
  • The built-in Intel OpenVINO and Intel UHD Graphics help boost AI image recognition and offload CPU workloads.



Overview:

  • CPU: Intel Core i5-12400 6-core/12-thread Processor, burst up to 4.4 GHz
  • System Memory: 32 GB SODIMM DDR4 (2 x 16 GB)
  • M.2 Slot: 2 x M.2 2280 PCIe Gen 4 x4 slots
  • Form Factor: Tower



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

CPU Intel Core i5-12400 6-core/12-thread Processor, burst up to 4.4 GHz
CPU Architecture 64-bit x86
Graphic Processors Intel UHD Graphics 730
Floating Point Unit Yes
Encryption Engine Yes (AES-NI)
Hardware-accelerated Transcoding Yes
System Memory 32 GB SODIMM DDR4 (2 x 16 GB)
Maximum Memory 64 GB ( 2 x 32 GB)
Memory Slot 2 x SODIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable Yes
M.2 Slot 2 x M.2 2280 PCIe Gen 4 x4 slots
SSD Cache Acceleration Support Yes
GPU pass-through Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via PCIe expansion card
10 Gigabit Ethernet Port Optional via PCIe expansion card
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 2
Slot 1: PCIe Gen 4 x16
Slot 2: PCIe Gen 4 x4
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2 10Gbps
2 x Type-A USB 3.2 Gen 2 10Gbps
HDMI Output 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)
Form Factor Tower
LED Indicators HDD 1-8, Status, LAN, USB port, M.2 port
LCD Display/ Button Yes
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 188.2 × 329.3 × 280.8 mm
Weight (Net) 7.14 kg
Weight (Gross) 8.95 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27 C (80.6 F)
Power Supply Unit 250W, 100-240V
Power Consumption: HDD Sleep Mode 58.127 W
Power Consumption: Operating Mode, Typical 81.865 W
Fan System fan: 2 x 120mm, 12VDC
CPU fan: 1 x 60mm, 12VDC
System Warning Buzzer
Kensington Security Slot Yes
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 3500
