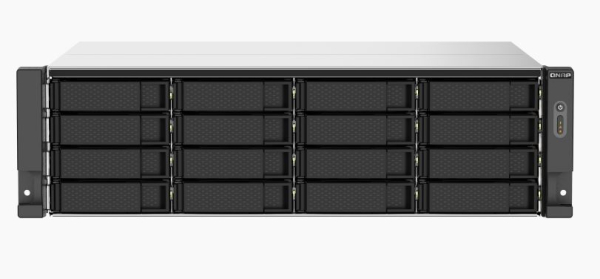

QNAP TS-1673AU-RP 16-Bay Rackmount Ryzen V1500B 16GB RAM Diskless NAS TS-1673AU-RP-16G

SKU : TS-1673AU-RP-16G
Brand : QNAP
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
CPU: AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor, System Memory: 16 GB UDIMM DDR4 (1 x 16 GB), PCIe Slot: 2 x PCIe Gen3 x4, Form Factor: 3U Rackmount, Warranty: 02 Years, TS-1673AU-RP-16G.
Ask a question about this product
$5,179.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # QNAP | Model # TS-1673AU-RP-16G



With its powerful AMD Ryzen V1000 series V1500B Quad-core processor, the TS-1673AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1673AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-1673AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-1673AU-RP the preeminent choice to tackle resource-demanding applications and tasks. The TS-1673AU-RP supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.



Features:

  • Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE/ 10MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
  • Add extra functionality to the TS-1673AU-RP with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.
  • Supports entry-level NVIDIA graphics cards for video processing or GPU-passthrough to VMs.
  • Qtier technology and SSD caching enable 24/7 optimized storage efficiency.
  • Host multiple virtual machines and containers to run a wide range of applications on the TS-1673AU-RP.
  • Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.



Overview:

  • CPU: AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
  • System Memory: 16 GB UDIMM DDR4 (1 x 16 GB)
  • PCIe Slot: 2 x PCIe Gen3 x4
  • Form Factor: 3U Rackmount



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

CPU AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture 64-bit x86
Floating Point Unit Yes
Encryption Engine Yes(AES-NI)
Hardware-accelerated Transcoding Optional via a PCIe graphics card
System Memory 16 GB UDIMM DDR4 (1 x 16 GB)
Maximum Memory 64 GB (2 x 32 GB)
Memory Slot 2 x UDIMM DDR4
Support ECC memory
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 16 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable Yes
M.2 Slot Optional via a QNAP QM2 PCIe card
SSD Cache Acceleration Support Yes
GPU pass-through Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via a network adapter
10 Gigabit Ethernet Port Optional via a network adapter
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 2 x PCIe Gen3 x4
USB 3.2 Gen 1 port 1 x Type-A
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C
1 x Type-A
HDMI Output Optional via a PCIe graphics card
Form Factor 3U Rackmount
LED Indicators HDD 1-16, Status, LAN, USB, Power
Buttons Power, Reset
Dimensions (HxWxD) 132 × 482 × 425 mm
Weight (Net) 12 kg
Weight (Gross) 17.15 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27 C (80.6 F)
Power Supply Unit 550W (x2), 100-240V AC, 50-60Hz, 7-3.5A
Power Consumption: HDD Sleep Mode 47.75 W
Power Consumption: Operating Mode, Typical 97.34 W
Fan 3 x 80mm, 12VDC
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 2000
