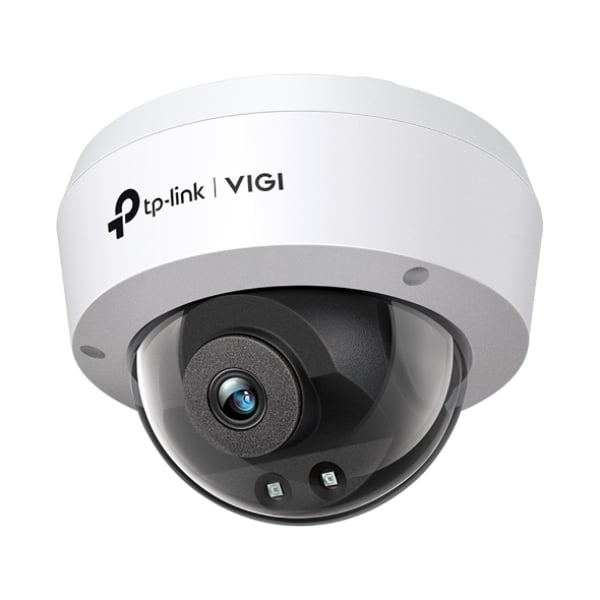

Name: TP-Link VIGI C230I 3MP IR Dome Network Camera 4mm Lens
Brand: TP-Link
SKU: VIGI C230I(4mm)
Price: 61 AUD
Availability: InStock

TP-Link VIGI C230I 3MP IR Dome Network Camera 4mm Lens

SKU : VIGI C230I(4mm)

Brand : TP-Link

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # TP-Link | Model # VIGI C230I(4mm)

VIGI’s professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

Features:

Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve the quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C230I comes with two different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

Overview:

Image Sensor: 1/2.8” Progressive Scan CMOS
Day/Night Switch: Unified/ Scheduled/ Auto\
Lens Mount: M12
Day/Night Mechanism: IR Cut Filter
Power: DC Power Port

Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Camera :-
Image Sensor	1/2.8” Progressive Scan CMOS
Lens	4 mm
Day/Night Switch	Unified/ Scheduled/ Auto
Digital Noise Reduction	3D DNR
WDR	DWDR
Weatherproof Rating	IP67
IR Working Distance	30m
Shutter Speed	1/3 to 1/10000 s
Aperture	4 mm: F2.0
Lens Mount	M12
Viewing Angle	4mm: 82.5°/44.9°/99.3°(H/V/D)
Slow Shutter	Yes
Minimum Illumination	Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism	IR Cut Filter
Network :-
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Interfaces :-
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm	N/A
Reset Button	N/A
Power	DC Power Port
Button	-
Video Output	-
On-board Storage	N/A
Built-in Microphone	N/A
Built-in Speaker	N/A
Audio	N/A
Alarm And Event Management :-
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Message Push
Linkage Method	N/A
Output Notification	Message Push
Video/Image :-
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution	3MP (2304 × 1296)
Video Streaming	Main Stream Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Video Bit Rate	64 Kbps to 4 Mbps
Day/Night Switch	Day/Night/Auto/Schedule
Smart Feature-set :-
Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region
Audio :-
Audio Communication	N/A
Audio Input	N/A
Audio Output	N/A
Audio Compression	N/A
Audio Sampling Rate	N/A
Environment Noise Filtering	N/A
Audio Bit Rate	N/A
Illuminator :-
IR LED	Quantity: 2 Range: 30m Wavelength: 850nm
White LED	Auto/Scheduled/Always on/Always off
Illuminator On/Off Control	N/A
Lens :-
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	4 mm: F2.0
FOV	4 mm: Horizontal FOV: 82.5°, Vertical FOV: 44.9°, Diagonal FOV: 99.3°
Lens Mount	M12
DORI Distance	4 mm: Detect: 65 m (214 ft) Observe: 27 m (89 ft) Recognize: 13 m (43 ft) Identify: 7 m (21 ft)
Angle Adjustment (Manual) :-
Range	Pan: 0° to 355° Tilt: 0° to 75°
Video :-
Max. Resolution	2304 × 1296
Main Stream	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 704x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image :-
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
General :-
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Dimensions( H X W X D )	115 × 115 × 86 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.27 Kg
Power Consumption	12V DC: Max 5W PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Vandal Resistant	IK10
Protection	IP67, IK10
