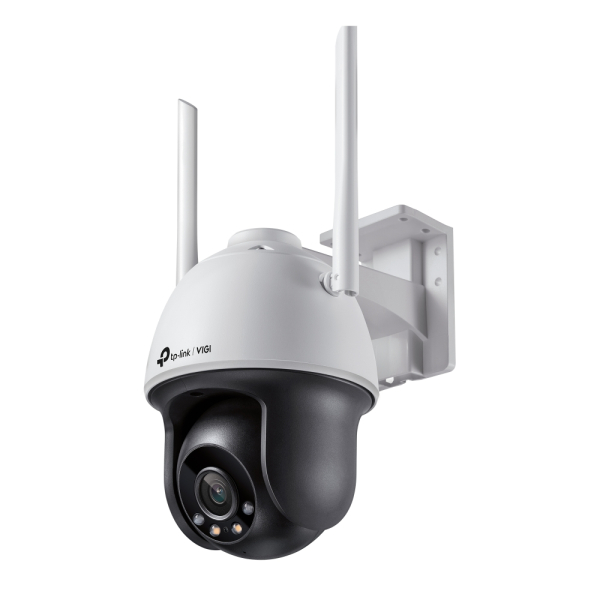

Name: TP-Link VIGI C540-W 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera 4mm
Brand: TP-Link
SKU: VIGI C540-W(4mm)
Price: 124 AUD
Availability: InStock

TP-Link VIGI C540-W 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera 4mm

SKU : VIGI C540-W(4mm)

Brand : TP-Link

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # TP-Link | Model # VIGI C540-W(4mm)

Monitor 24-hour clear and colourful details even on pitch night. VIGI Full-Colour camera provides maximum 4MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights. Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.

Features:

4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via a high-sensitivity sensor and included spotlight LEDs.
Powerful Pan Tilt: Customised patrol routes and auto-tracking provide more intelligent options to monitor key areas and improve security within your property.
Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
Waterproof: Reliable IP66 for stable outdoor performance.
Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Overview:

Image Sensor: 1/3" Progressive Scan CMOS
Lens: Fixed focal lens (4 mm)
Pan/Tilt Range: Pan: 0° to 350°, Tilt: 0° to 120°
Shutter Speed: 1/3 to 1/10000 s
Aperture: 4 mm: F1.6
Frequency: 2.4 GHz

Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

CAMERA :-
Image Sensor	1/3" Progressive Scan CMOS
Lens	Fixed focal lens (4 mm)
Day/Night Switch	Unified/ Scheduled/ Auto
Digital Noise Reduction	3D DNR
WDR	DWDR
Weatherproof Rating	IP66
IR Working Distance	30m
Pan/Tilt Range	Pan: 0° to 350°, Tilt: 0° to 120°
Shutter Speed	1/3 to 1/10000 s
Aperture	4 mm: F1.6
Lens Mount	M12
Illumination Distance	30 m
Viewing Angle	(4mm) Horizontal FOV: 79°Vertical FOV: 43°Diagonal FOV: 93°
Digital Zoom	Yes
Slow Shutter	Yes
Minimum Illumination	0 lux with IR/white Light
Day/Night Mechanism	IR Cut Filter
NETWORK :-
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wireless Rate	11 Mbps (802.11b) 54 Mbps (802.11g) 150 Mbps (802.11n)
Wireless Security	WPA/WPA2-PSK
ONVIF	Yes
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Web Browser	Google Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Frequency	2.4 GHz
GENERAL :-
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Power Adapter Mounting Accessories
Dimensions( H X W X D )	120 × 172 × 198 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.62 Kg
Power Consumption	12V DC: Max 15.5W
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
Antenna	Quantity: 2 Type: 2.4GHz Welded Dipole Omni-Directional Antenna Gain: 2.0dBi
Protection	IP66
Product Dimensions (L x W x H)	120 × 172 × 198 mm (excluding antennas)
Certifications	CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC
INTERFACES :-
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
Button	Reset Button
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
ALARM AND EVENT MANAGEMENT :-
Smart Event	Area Intrusion Detection, Line-Crossing Detection, People Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push
WIRELESS :-
Standards	IEEE 802.11b/g/n
WiFi Channels	UN: 1-13 US: 1-11
Frequency	2.4 GHz
Wireless Transmit Power	High
Auto Wireless Channel	N/A
Wireless Statistics	N/A
Throughput Mornitor	N/A
Radio Bandwidth	Auto: N/A 20M: Yes 40M: Yes
Wireless Rate	11 Mbps (802.11b) 54 Mbps (802.11g) 150 Mbps (802.11n)
Wireless Security	WPA/WPA2-PSK
Wireless Mode	AP, AP Client
VIDEO/IMAGE :-
Video Compression	Main stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240
Video Streaming	Main Stream Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement	BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET :-
Smart Event	Area Intrusion Detection, Line-Crossing Detection, Human Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region
AUDIO :-
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
PTZ :-
Pan/tilt Range	Pan: 0° to 350°, Tilt: 0° to 120°
Pan/tilt Speed	Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s Tilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s
Manual Control Speed	Configurable from 8° to 35°/s
Presets	300
Patrol Scan	8 patrols, up to 8 presets for each patrol
Power-off Memory	Yes; Auto restore to previous PTZ and lens status after power failure
Park Action	Yes; Preset; Patrol Scan
3D Positioning	Yes
ILLUMINATOR :-
IR LED	Quantity: 2 Range: 30m Wavelength: 850nm
White LED	Quantity: 2 Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
LENS :-
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	4mm: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Lens Mount	M12
DORI Distance	4 mm: Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
ANGLE ADJUSTMENT (MANUAL) :-
Range	Pan: 0° to 348° Tilt: 0° to 120°
VIDEO :-
Max. Resolution	2560 X 1440
Main Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
IMAGE :-
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
