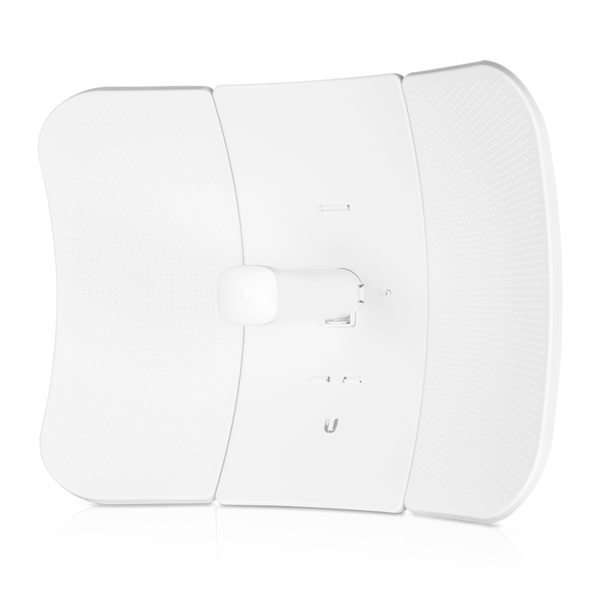

Ubiquiti LBE-5AC-LR airMAX LiteBeam AC 5 GHz Long-range Station

Name: Ubiquiti LBE-5AC-LR airMAX LiteBeam AC 5 GHz Long-range Station
Brand: Ubiquiti
SKU: LBE-5AC-LR
Price: 221 AUD
Availability: InStock

SKU : LBE-5AC-LR

Brand : Ubiquiti

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Networking interface: (1) GbE RJ45 port, Power method: Passive PoE (pairs 4, 5+; 7, 8 return), Max. power consumption: 7W, LEDs: Power, Ethernet, ESD/EMP protection: Air/contact ± 24kV, Warranty: 01 Year, LBE-5AC-LR.

Ask a question about this product

$221.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # LBE-5AC-LR

The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance links. Reach new customers and still maintain your great ROI.

Features:

Improved Radio Design
Improved Mounting
Improved Surge Protection
Management WiFi Radio/UISP mobile app
AirOS 8

Overview:

Networking interface: (1) GbE RJ45 port
Power method: Passive PoE (pairs 4, 5+; 7, 8 return)
Max. power consumption: 7W
LEDs: Power, Ethernet
ESD/EMP protection: Air/contact ± 24kV

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Mechanical :-
Dimensions	512 x 385.8 x 258.3 mm (20.2 x 15.2 x 10.2")
Weight	Without mount: 1.4 kg (3 lb) With mount: 1.7 kg (3.8 lb)
Enclosure materials	Aluminum, plastic
Mounting	Pole mount (Kit included)
Wind loading	550 N at 200 km/h (123.6 lbf at 125 mph)
Wind survivability	200 km/h (125 mph)
Hardware :-
Networking interface	(1) GbE RJ45 port
Power method	Passive PoE (pairs 4, 5+; 7, 8 return)
Power supply	24V, 0.3A Gigabit PoE adapter (Included)
Max. power consumption	7W
Supported voltage range	24V ± 10%
Gain	26 dBi
LEDs	Power, Ethernet
ESD/EMP protection	Air/contact ± 24kV
Channel sizes	PtP mode: 10/20/30/40/50/60/80 MHz PtMP mode: 10/20/30/40 MHz
Operating temperature	-40 to 70° C (-40 to 158° F)
Operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Operating Frequency (MHz) :-
Worldwide	5150-5875 MHz
USA
U-NII-1	5150-5250 MHz
U-NII-2A	5250-5350 MHz
U-NII-2C	5240-5725 MHz
U-NII-3	5725-5850 MHz
Management Radio (MHz) :-
Worldwide	2412 - 2472 MHz
US/CA	2412 - 2462 MHz
