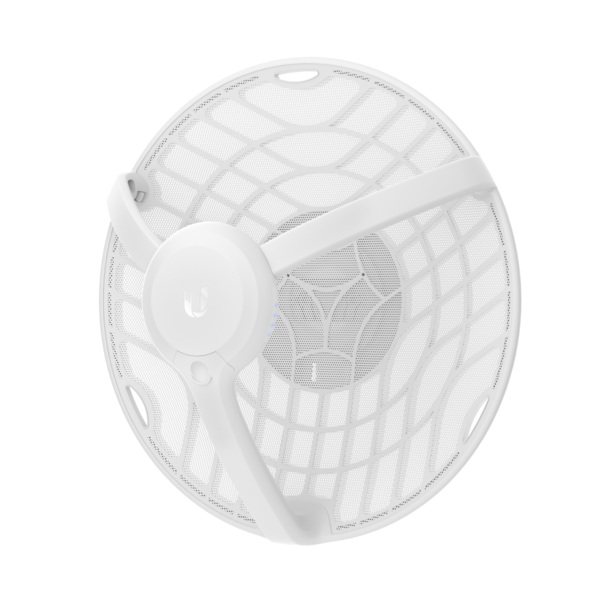

Ubiquiti Networks GBE-LR-AU AirMAX GigaBeam Long-Range 60/5 GHz Radio

Name: Ubiquiti Networks GBE-LR-AU AirMAX GigaBeam Long-Range 60/5 GHz Radio
Brand: Ubiquiti
SKU: GBE-LR
Price: 423 AUD
Availability: InStock

SKU : GBE-LR

Brand : Ubiquiti

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Wind loading: 56 N at 200 km/h (12.6 lbf at 125 mph), Wind survivability: 200 km/h (125 mph), Processor: Quad-core ARM Cortex- A7, Memory: 256 MB DDR3, Networking interface: (1) 10/100/1000 MbE RJ45 port, Warranty: 01 Year, GBE-LR.

Ask a question about this product

$423.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Ubiquiti | Model # GBE-LR

Featuring a high-gain dish antenna, the GigaBeam LR is a 60 GHz radio designed for low-interference and high-throughput connectivity in long-range deployments. It includes a 5 GHz radio for failover. For the 60 GHz link, the GigaBeam LR supports full bandwidth use of 2.16 GHz. The dedicated management radio allows easy setup via Wi-Fi.

Features:

60 GHz radio with 5 GHz radio backup
Low-interference 60 GHz spectrum
Up to 1+ Gbps with low latency
Long-range performance
2.4 GHz management radio
Full bandwidth support: 2.16

Overview:

Wind loading: 56 N at 200 km/h (12.6 lbf at 125 mph)
Wind survivability: 200 km/h (125 mph)
Processor: Quad-core ARM Cortex- A7
Memory: 256 MB DDR3
Networking interface: (1) 10/100/1000 MbE RJ45 port

Manufacturer Warranty: 01 Year Limited Warranty

Technical Specifications

Mechanical :-
Dimensions	415 x 415 x 303 mm (16.34 x 16.34 x 11.93")
Weight	Without mount: 1.4 kg (3.09 lb) With mount: 1.8 kg (3.97 lb)
Enclosure materials	Aluminum, UV-stabilized polycarbonate
Wind loading	56 N at 200 km/h (12.6 lbf at 125 mph)
Wind survivability	200 km/h (125 mph)
Mounting	Pole mount (included)
Hardware :-
Processor	Quad-core ARM Cortex- A7
Memory	256 MB DDR3
Networking interface	(1) 10/100/1000 MbE RJ45 port
RF connections	Internal
Power method	Passive PoE (pairs 4, 5+; 7, 8-)
Power supply	24V DC, 0.5A Gigabit PoE adapter (Included)
Voltage range	22—26V DC
Max. power consumption	11W
ESD/EMP protection	Air/contact: ± 24kV
Operating temperature	-40 to 60° C (-40 to 140° F)
Operating humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE
Software :-
Operating mode	PtP
Ubiquiti specific features	Integrated 60 GHz and 5 GHz radios, discovery protocol
Security	WPA2 AES only
Services	UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery
Tools	Antenna alignment tool, discovery utility, traceroute, speed test
Management interface	UISP application (web/mobile)
Minimum software requirements	Any modern web browser/iOS or Android based smartphone
RF	Max. conducted TX power 5/60 GHz combined: 25 dBm Channel bandwidth 60 Ghz: 2160 Mhz 5 Ghz: 20/40/80 Mhz Management radio US/CA: 2412 - 2462 MHz Worldwide: 2412 - 2472 MHzi Antenna gain 60 Ghz: 38 dBi 5 Ghz: 11 dBi
Operating Frequency (Mhz) :-
US/CA
U-NII-1	5150 - 5250
U-NII-2A	5250 - 5350
U-NII-2C	5470 - 5725
U-NII-3	5725 - 5850 57,000 – 66,000
Worldwide	5180 – 5875 57,000 - 66,000
LEDs :-
Power	Flashing white: bootup in progress White: system ready, Ubiquiti Internet Service Provider (UISP) not configured, not connected Flashing blue: system ready, UISP configured, but cannot connect Blue: system ready, UISP configured and connected
Ethernet	Flashing blue: Ethernet traffic detected
5G	Blue: active connection
60G	Blue: active connection
