Name: Asus ROG STRIX B650-A Gaming WIFI AM5 ATX Motherboard
Brand: Asus
SKU: ROG STRIX B650-A GAMING WIFI
Price: 481 AUD
Availability: InStock

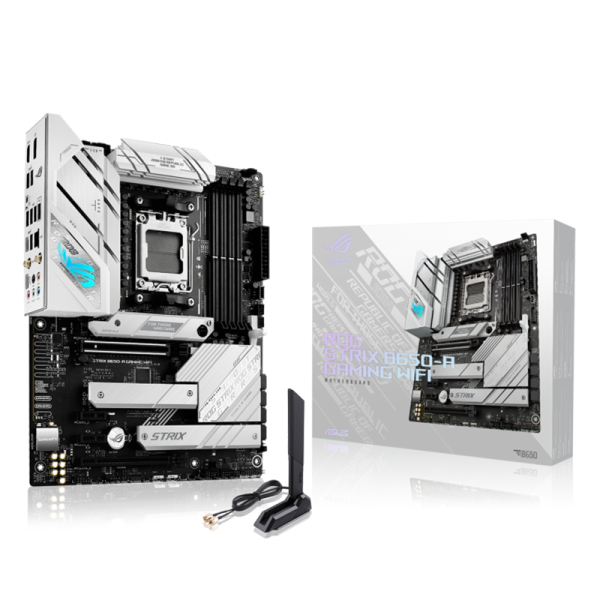

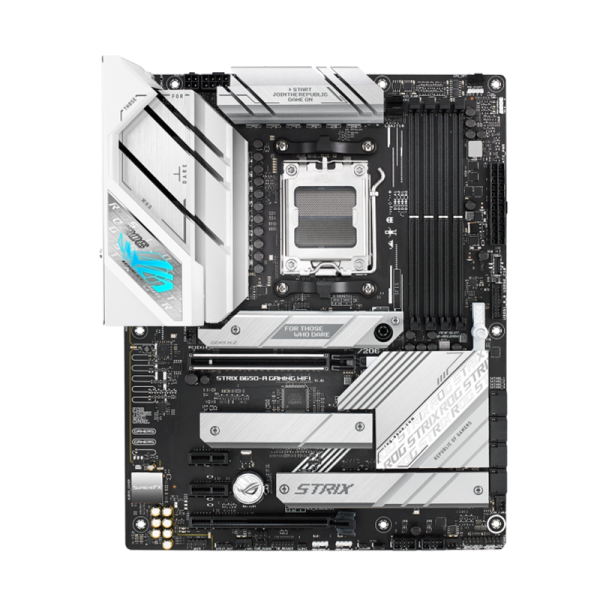

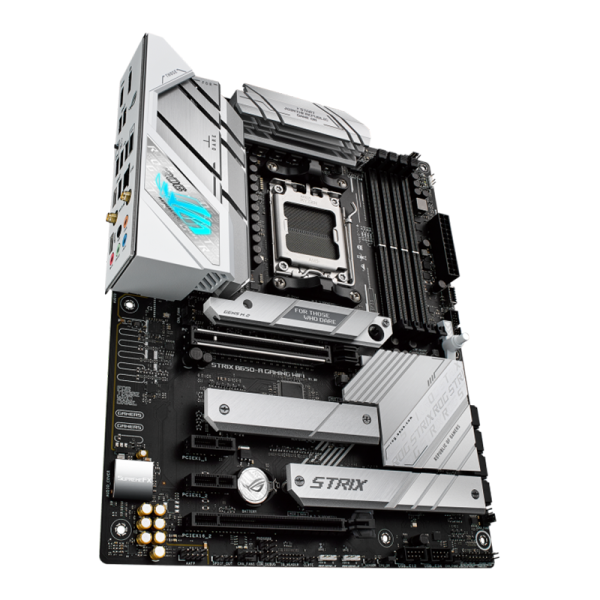

Asus ROG STRIX B650-A Gaming WIFI AM5 ATX Motherboard

SKU : ROG STRIX B650-A GAMING WIFI

Brand : Asus

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # Asus | Model # ROG STRIX B650-A GAMING WIFI

The ROG Strix B650-A Gaming WiFi comes equipped with potent performance and thermal prowess in a fresh-looking package. Robust power delivery designed to handle the latest AMD Ryzen 7000 Series processors is cooled with thick metal heatsinks that stand out against a black PCB. A PCIe 5.0 M.2 slot, speedy DDR5 memory support, and the latest WiFi 6E networking fleshes out the futuristic feature set.

Features:

Robust Power Solution: 12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
Optimized Thermal Design: Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads
Next-Gen M.2 Support: One PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance
Advanced Connectivity: One USB 3.2 Gen 2x2 Type-C® and eight additional rear USB ports, USB 3.2 Gen 2 Type-C front-panel connector, HDMI 2.1, DisplayPort 1.4, and one PCIe 4.0 x16 SafeSlot
High-Performance Networking: On-board WiFi 6E (802.11ax), Bluetooth 5.2, and Intel 2.5G Ethernet with ASUS LANGuard
Intelligent Control: ASUS-exclusive Two-Way AI Noise Cancelation and AI Networking
Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III

Overview:

Chipset: AMD B650
RAM Capacity: upto 192GB (48GB each)
DIMM Slots: 4
Operating System Supports: Windows 11 64-bit
Form Factor: ATX

Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

General

Chipset

AMD B650

Socket

AM5
AMD Ryzen 7000 Series Desktop Processors

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Unique Features

Extreme Engine Digi+
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
AURA Sync

Memory

RAM Capacity

upto 192GB (48GB each)

DIMM Slots

RAM Frequency Supports

DDR5 7600+(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 ECC and Non-ECC, Un-buffered Memory*

Onboard Graphics

With HDMI

1 x HDMI port
Supports 4K@60Hz as specified in HDMI 2.1

With DisplayPort

1 x DisplayPort
Supports max. 8K@60Hz as specified in DisplayPort 1.4.

Wireless Communication

Wi-Fi

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band

Bluetooth

5.2

Slots And Ports

Expansion Slots

1 x PCIe 4.0 x16 slot
2 x PCIe 4.0/3.0 x1 slots
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Internal I/O Connectors

1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
1 x COM_DEBUGheader

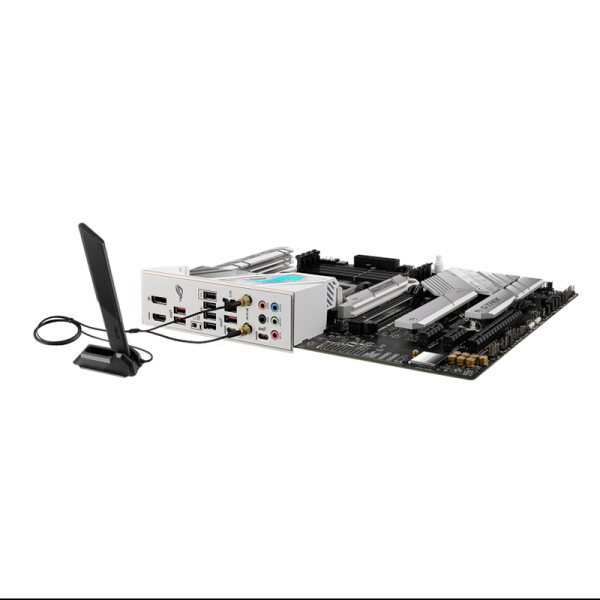

Back Panel Connectors

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
