Name: MSI PRO Z790-A Max Wifi LGA1700 ATX Desktop Motherboard
Brand: MSI
SKU: PRO Z790-A MAX WIFI
Price: 515 AUD
Availability: InStock

MSI PRO Z790-A Max Wifi LGA1700 ATX Desktop Motherboard

SKU : PRO Z790-A MAX WIFI

Brand : MSI

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # MSI | Model # PRO Z790-A MAX WIFI

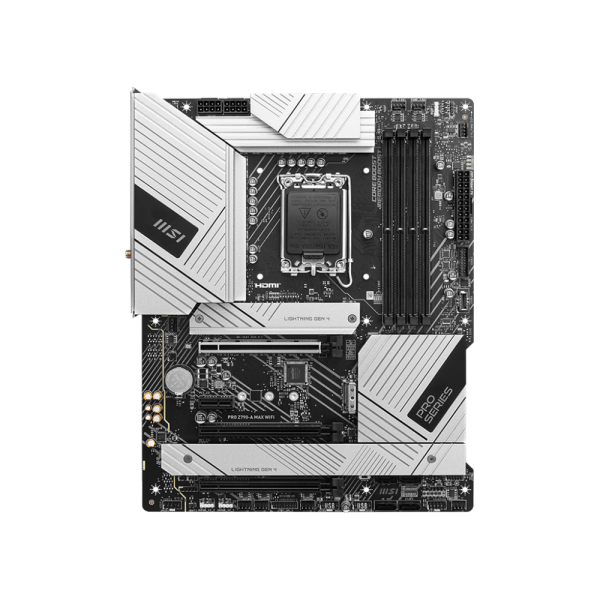

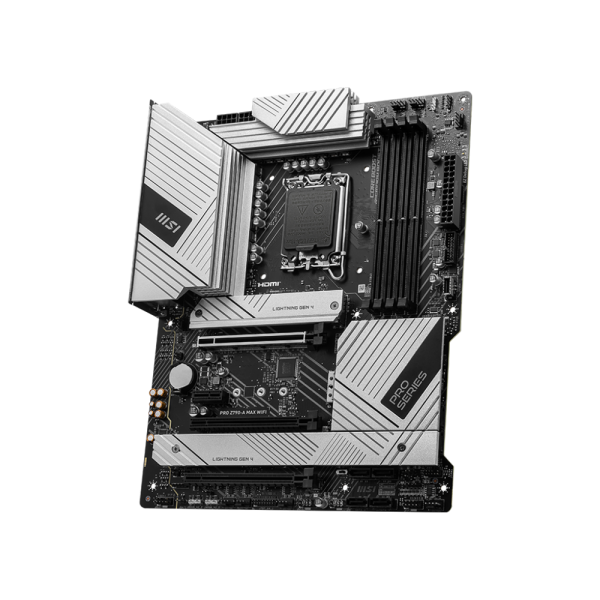

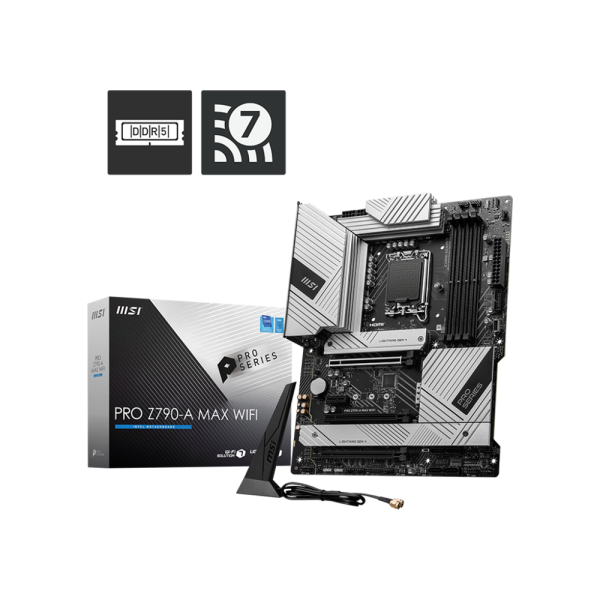

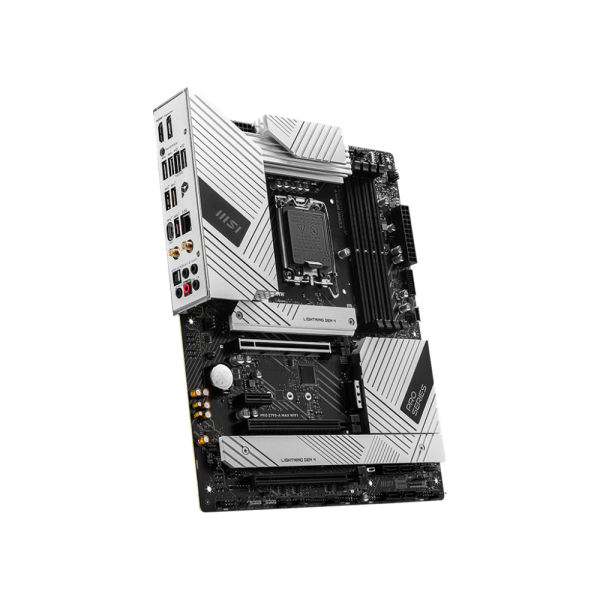

PRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel Core 14th Gen and 13th Gen processors.

Features:

Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Overview:

Chipset: Intel Z790
Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 192GB
Onboard Graphics: HDMI / DisplayPort
LAN: Intel 2.5Gbps LAN
Operating System: Support for Windows 11 64-bit
PCB: ATX

Manufacturer Warranty: 03 Years Limited Warranty

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Chipset	Intel Z790
CPU Support	Support Intel Core 14th, 13th and 12th Gen Processors, Intel Pentium Gold, Celeron Processor and Intel Processor 300(T) LGA 1700
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 192GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*
Expansion Slot	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
Raid	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Intel 2.5Gbps LAN
Wireless / Bluetooth	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Audio	Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
LED Feature	4x EZ Debug LED

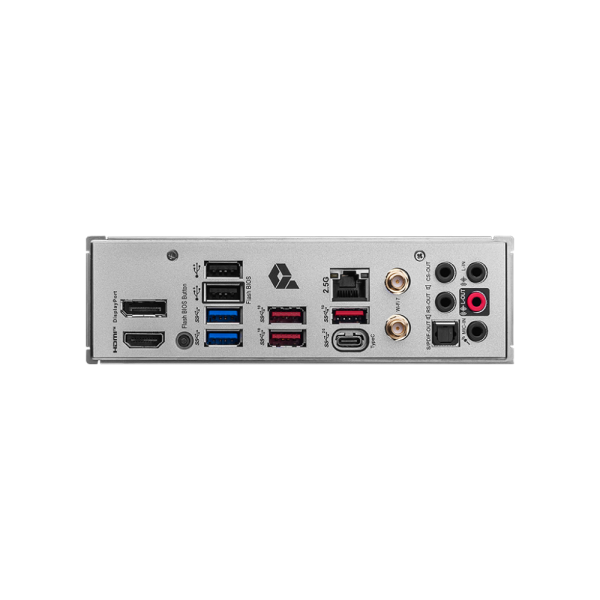

Back Panel Ports	DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) S/PDIF-OUT
Operating System	Support for Windows 11 64-bit
Pcb Dimension (W × L)	ATX 243.84mmx304.8mm
