Name: MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard
Brand: MSI
SKU: MAG Z790 TOMAHAWK MAX WIFI
Price: 647 AUD
Availability: InStock

MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard

SKU : MAG Z790 TOMAHAWK MAX WIFI

Brand : MSI

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Estimated Shipping

Find

Description
Specifications
Reviews

Product Description

Manufacture # MSI | Model # MAG Z790 TOMAHAWK MAX WIFI

MAG Z790 TOMAHAWK MAX WIFI is designed for gamers, providing a stable, solid, and durable foundation for their PC builds. Coming up with Wi-Fi 7 solution, 2.5G LAN, DDR5, PCIe 5.0 solutions, and exclusive M.2 Shield Frozr, it's ready for Intel® 14th Gen and 13th Gen Core processors.

Features:

Supports DDR5 Memory, up to 7800+(OC) MHz
Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Overview:

Chipset: Intel Z790
Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 192GB
Onboard Graphics: HDMI / DisplayPort
LED Feature: 4x EZ Debug LED
Operating System: Windows 11/10 64-bit
PCB: ATX

Manufacturer Warranty: 03 Years Limited Warranty

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Chipset	Intel Z790
CPU Support	Support Intel Core 14th, 13th and 12th Gen Processors, Intel Pentium Gold, Celeron Processor and Intel Processor 300(T) LGA 1700
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 192GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*
Expansion Slot	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 8x SATA 6G * SATA_1 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
Raid	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function.
USB	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Intel 2.5Gbps LAN
Wireless / Bluetooth	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Audio	Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
LED Feature	4x EZ Debug LED

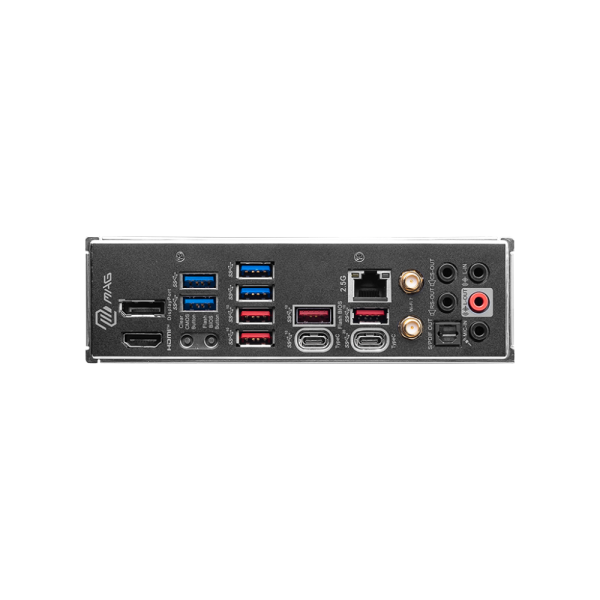

Back Panel Ports	1x DisplayPort 1x HDMI port 1x Clear CMOS button 1x Flash BIOS button 4x USB 3.2 Gen 1 5Gbps Type-A ports (From Hub GL3523) 4x USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset) 1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset) 1x USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset) 1x 2.5Gbps LAN (RJ45) port 2x Wi-Fi antenna connectors 5x Audio jacks 1x Optical S/PDIF Out connector
Operating System	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension (W × L)	ATX 243.84mmx304.8mm
BIOS Features	1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.5 Multi-language
Software	Drivers MSI Center Intel Extreme Tuning Utility CPU-Z MSI GAMING Norton 360 AIDA64 Extreme - MSI Edition MSI APP Player (BlueStacks) Adobe Creative Cloud Acrobat
