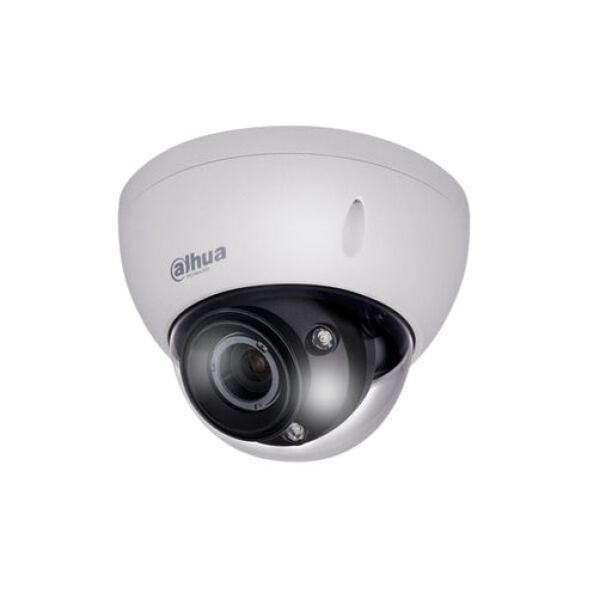

Dahua HDBW3231EP 2MP HDSDI Dome Motorised Camera

SKU : DH-HAC-HDBW3231EP-ZT-2712
Brand : Dahua
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse
Image Sensor: 1/2.8" CMOS, Effective Pixels: 1945(H)×1097(V), 2.1MP, Lens Type: Motorized lens / Auto iris, Mount Type: Board-in, Warranty: 03 Years, DH-HAC-HDBW3231EP-ZT-2712.
Ask a question about this product
$269.00

Estimated Shipping

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Dahua | Model # DH-HAC-HDBW3231EP-ZT-2712



Experience 1080P full HD video, a complete set of features, and the simplicity of reusing existing coaxial infrastructure with HDCVI. The Starlight HDCVI camera with 120dB true WDR presents a high-quality image with rich details even in extreme low-light conditions.



Features:

  • HDCVI technology inherits the born feature of simplicity from traditional analog surveillance systems, making itself the best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling.
  • With the adoption of high-performance sensors, the camera is able to provide incomparable performance even under extreme lowlight environments. The starlight feature allows more details to be captured and accurate colour to be recognized at night or in scenes with limited illumination.
  • Embedded with industry-leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
  • The camera is designed with multi-interfaces for transmitting/receiving various signals. It supports HDCVI and CVBS video outputs simultaneously with two BNC connectors and a tester out interface for debugging.
  • The camera is designed with an array of LED IR illumination for best lowlight performance at maximum distance. Smart IR is a technology to ensure brightness uniformity in B/W images under low illumination.



Overview:

  • Image Sensor: 1/2.8" CMOS
  • Effective Pixels: 1945(H)×1097(V), 2.1MP
  • Lens Type: Motorized lens / Auto iris
  • Mount Type: Board-in



Manufacturer Warranty: 03 Years Limited Warranty

Technical Specifications

Camera :-
Image Sensor 1/2.8" CMOS
Effective Pixels 1945(H)×1097(V), 2.1MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1.3s~1/30000s
NTSC: 1s~1/30000s
Minimum Illumination 0.005Lux/F1.4, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 50m (164feet)
IR On/Off Control Auto / Manual
IR LEDs 3
Lens :-
Lens Type Motorized lens / Auto iris
Mount Type Board-in
Focal Length 2.7-12mm
Max Aperture F1.4
Angle of View H: 95°~36°
Focus Control Auto / Manual
Close Focus Distance 300mm
11.81"
Pan / Tilt / Rotation :-
Pan/Tilt/Rotation Pan: 0° ~ 355°
Tilt: 0° ~ 65°
Rotation: 0° ~ 355°
Video :-
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output & 1-channel BNC SDI video output
CVBS tester out
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D / 3D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications :-
Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface :-
Audio Interface 1-channel audio in
Alarm Interface 1-channel alarm in & 1-channel alarm out
Electrical :-
Power Supply AC 24V±25% / DC 12V±25%
Power Consumption Max 12.5W (12V DC, IR on)
Environmental :-
Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance IP67 & IK10
Construction :-
Casing Aluminium
Dimensions Φ159.1mm×117.9mm (Φ6.26"×4.64")
Net Weight 0.90kg (1.98lb)
Gross Weight 1.20kg (2.65lb)
