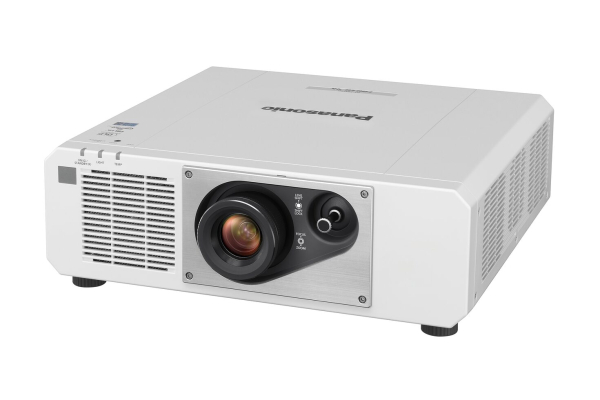

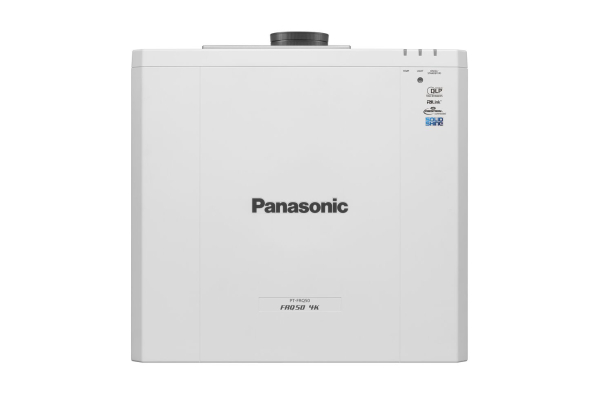

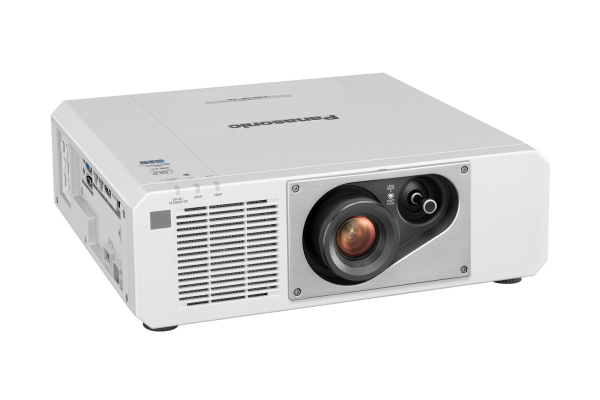

Panasonic PT-FRQ50W Large Venue 4K UHD Laser Projector

Panasonic PT-FRQ50W Large Venue 4K UHD Laser Projector

Name: Panasonic PT-FRQ50W Large Venue 4K UHD Laser Projector
Brand: Panasonic
SKU: PT-FRQ50W
Price: 8518 AUD
Availability: InStock

SKU : PT-FRQ50W

Brand : Panasonic

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

Power Supply: AC 100–240 V, 50/60 Hz; AC 110 V, 60 Hz, Power Consumption: 480 W, Projector type: 1-Chip DLP projector, Light Source: Laser diodes, Center-to-corner zone ratio*2: 0.9, Light Output*2 *3: 5,200 lm, 02 Years Limited Warranty, PT-FRQ50W.

Ask a question about this product

$8,518.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture # Panasonic | Model # PT-FRQ50W

Quad Pixel Drive creates sharp, detailed 4K images with Rich Color Enhancer achieving vivid, accurate color. High-speed processing supports 240 Hz/1080p frame rates with latency of 8 ms or less for smooth, grid-less images. V/H Lens-Shift and 2.0x zoom enhance installation flexibility while two CEC-compatible HDMI inputs and DIGITAL LINK integrate into 4K infrastructure. Preactivated upgrade kits for Geo Pro and Remote Preview Lite secure an effortless 4K experience.

Features:

1-Chip DLP laser projector, 5,200lm brightness
4K (3840 x 2160) output resolution, ideal for museum exhibitions, education, and corporate offices
2.0x zoom lens and wide V/H Lens Shift (V: +71 %, -48 %, H: +34 %, -27 %)
Preactivated upgrade kit for Geometry Manager Pro
Supports 240Hz/1080p high frame rate with minimal input-to-output latency

Overview:

Power Supply: AC 100–240 V, 50/60 Hz; AC 110 V, 60 Hz (Taiwan)
Power Consumption: 480 W
Projector type: 1-Chip DLP projector
Light Source: Laser diodes
Center-to-corner zone ratio*2: 0.9
Light Output*2 *3: 5,200 lm

Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Color	White
Projector type	1-Chip DLP projector
DLP Chip \| Panel Size	16.5 mm (0.65 in) diagonal (16:9 aspect ratio)
DLP Chip \| Display Method	DLP chip x 1, DLP projection system
DLP chip \| Number of Pixels*1	1920 x 1080 pixels (If a signal other than 120 Hz/240 Hz is input, it cannot be displayed at this resolution.)
Light Source	Laser diodes
Light Output2 3	5,200 lm
Time until light output declines to 50 %*4	20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
Resolution	4K (3840 x 2160 pixels) (With Quad Pixel Drive)
Contrast Ratio*2	20,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. HDMI signal input)
Screen Size (Diagonal)	1.02–7.62 m (40–300 in), 16:9 aspect ratio
Center-to-corner zone ratio*2	0.9
Lens	2.0x manual zoom (throw ratio: 1.46–2.93:1), manual focus, F 2.0–3.4, f 21.5–43.0 mm
Lens shift \| Vertical(From the origin point of the lens mounter)	+71 %, -48 % (manual)
Lens shift \| Horizontal(From the origin point of the lens mounter)	+34 %, -27 % (manual)
Keystone Correction Range	Vertical: ±40 °, Horizontal: ±20 °
Terminals \| HDMI IN 1/2	HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input 5), CEC supported
Terminals \| Computer In	D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals \| Monitor Out	D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals \| Audio In/Out	M3 stereo mini-jack x 2
Terminals \| Serial In	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals \| DIGITAL LINK/LAN	RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input 6 )
Terminals \| LAN	RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink [Class 2], Art-Net)
Terminals \| USB	USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module, for USB memory, and for power supply (DC 5 V, maximum 2 A)
Power Supply	AC 100–240 V, 50/60 Hz; AC 110 V, 60 Hz (Taiwan)
Power Consumption	480 W
Operation Noise*2	35 dB (NORMAL/ECO) / 28 dB (QUIET
Dimensions (W x H x D)*7	498 x 168 x 492 mm (19 5/8 x 6 5/8 x 19 3/8 )
Weight*8	Approx. 16.1 kg (35.5 lbs)
Operating Environment	Operating temperature: 0–45 °C (32–113 °F 9), operating humidity: 10–80 % (no condensation)
Applicable Software	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro 10
