Projector Type |
LCD projectors |
LCD Panel Panel Size |
16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
Brightness |
5,200 lm |
Light Source |
Laser diode |
Time until light output declines to 50 % |
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) |
Filter |
Included (Estimated maintenance time: approx. 20,000 hours) |
Resolution |
WUXGA (1920 x 1200 pixels) |
Contrast Ratio |
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
Screen Size |
0.76–7.62 m (30–300 in), 16:10 aspect ratio |
Center-to-corner zone ratio |
85 |
Digital Zoom Extender |
Throw ratio 1.09–2.21:15 (Corresponding value. When used together with optical zoom.) |
Lens |
1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F 1.60–2.12, f 15.30–24.64 mm |
Lens shift | Horizontal(From the origin point of the lens mounter) |
+20 %, -20 % (manual) |
Lens shift | Vertical(From the origin point of the lens mounter) |
+44 %, 0 % (manual) |

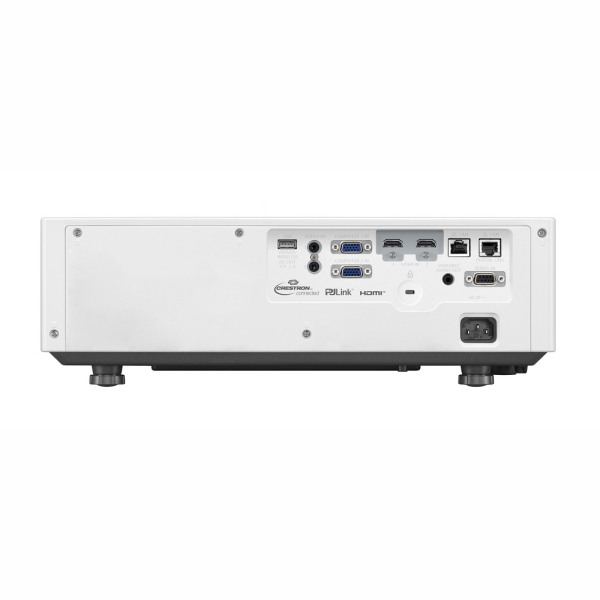

Terminals | Serial In |
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
Terminals | DIGITAL LINK |
RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], HDCP, Deep Color, 4K/30p*6 signal input) |
Terminals | LAN |
RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2] |
Power Supply |
AC 100 V–240 V, 50/60 Hz |
Power consumption | Maximum power consumption |
305 W (3.1–1.3 A) (310 VA) (Power consumption is 295 W at 200–240 V) |
Power consumption | On-mode power consumption (Operating mode)[Normal] |
270 W (100–120 V), 255 W (200–240 V) |
Power consumption | On-mode power consumption (Operating mode)[Eco] |
195 W (100–120 V), 185 W (200–240 V) |
Power consumption | On-mode power consumption (Operating mode)[Quiet] |
190 W (100–120 V), 180 W (200–240 V) |
Operation Noise |
36 dB (NORMAL/ECO), 26 dB (QUIET) |
Operating Environment |
Operating temperature: 0–45 °C (32–113 °F)*11,*12 , Operating humidity: 20–80 % (no condensation) |
Cabinet Materials |
Molded plastic |
Dimensions |
399 mm x 115 mm x 348 mm (15 23/32"x 4 17/32"x 13 11/16") (not including protruding parts) 399 mm x 133 mm x 348 mm (15 23/32" x 5 1/4" x 13 11/16") (with feet at shortest position) |
Applicable software/application |
Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows*13, Wireless Projector App for iOS/Android™*14 |
