Panasonic PT FRQ60W 4K 1DLP Laser Projector White

Panasonic PT FRQ60W 4K 1DLP Laser Projector White

Name: Panasonic PT FRQ60W 4K 1DLP Laser Projector White
Brand: Panasonic
SKU: PT-FRQ60W
Price: 10884 AUD
Availability: InStock

SKU : PT-FRQ60W

Brand : Panasonic

Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered from our Seven Hills, NSW warehouse

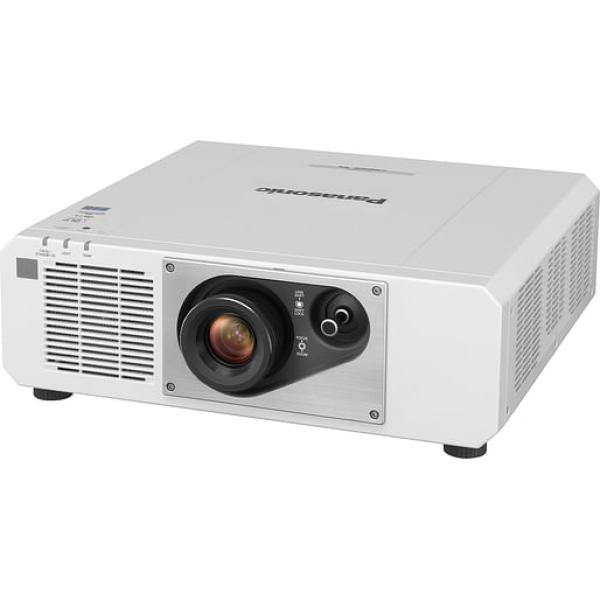

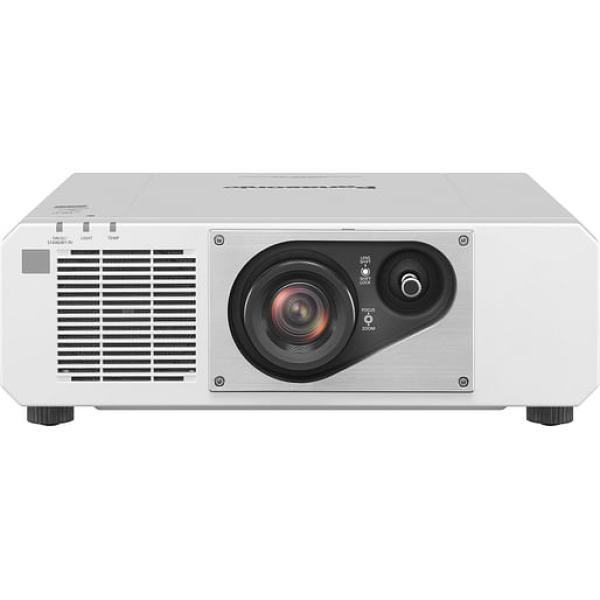

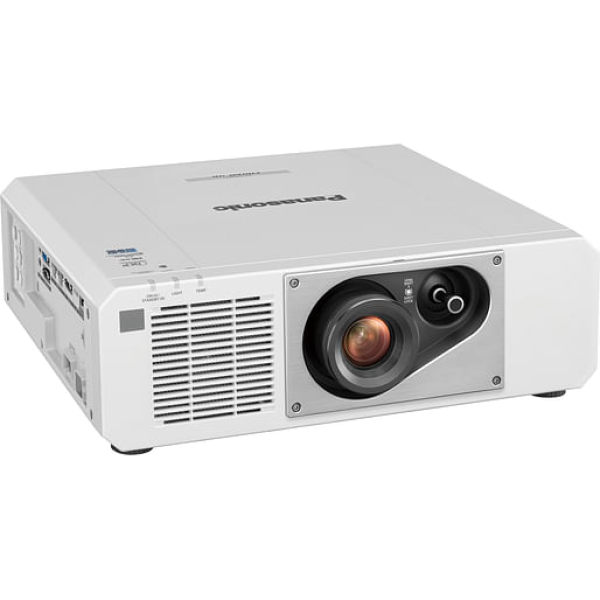

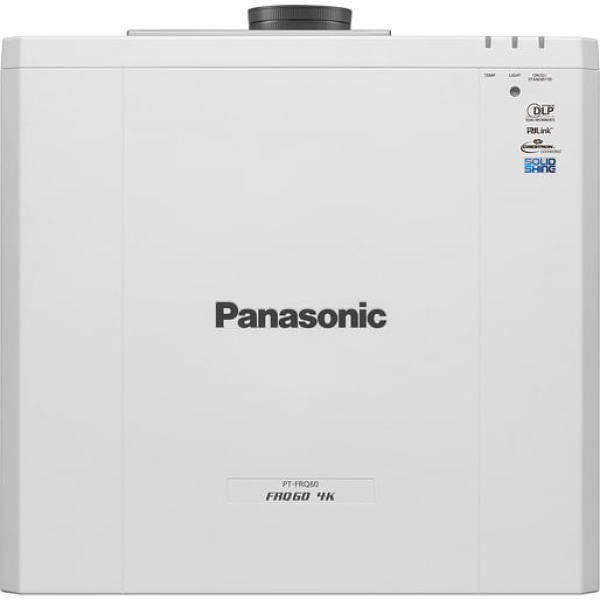

This Panasonic 1-Chip DLP™ projector offers 6,000 lumens of brightness with a 20,000:1 contrast ratio and supports a resolution of 4K (3840 x 2160 pixels) via Quad Pixel Drive. The projector features manual 2.0x zoom lens, with vertical and horizontal lens shift for optimal image alignment. With a long-lasting laser diode light source (20,000 hours in normal mode), it ensures high-quality, vibrant projections. It is equipped with various connectivity options, including HDMI, LAN, and USB, and operates with low noise levels of 31 dB in quiet mode.

Ask a question about this product

$10,884.00

Buy Now

Estimated Shipping

Find

For Bulky items and non-metro Australia a different shipping will be quoted on order receipt.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Description
Specifications
Reviews

Product Description

Manufacture: Panasonic | Model: PT-FRQ60W

The Panasonic 1-Chip DLP™ projector offers impressive 4K resolution (3840 x 2160) with Quad Pixel Drive, providing exceptional image clarity. With a light output of 6,000 lumens and a contrast ratio of 20,000:1, it delivers bright and dynamic visuals. The projector supports flexible installation with a 2.0x manual zoom lens and a vertical lens shift of +71% to -48%, allowing for optimal alignment. The projector also features HDMI inputs, network connectivity via LAN, and supports multiple control functions, including Crestron and PJLink. With a quiet operating noise of 31 dB in Quiet mode and a long-lasting light source of 20,000 hours, it's perfect for various professional settings.

Key Features:

Resolution: 4K (3840 x 2160) with Quad Pixel Drive
Brightness: 6,000 lumens (6,200 lumens center)
Contrast Ratio: 20,000:1 for sharp images
Lens: 2.0x manual zoom (throw ratio: 1.46–2.93:1)
Lens Shift: Vertical +71%, -48%; Horizontal +34%, -27%
Keystone Correction: Vertical ±40°, Horizontal ±20°
Light Source Life: 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)
Operating Noise: 31 dB (QUIET mode)
Connectivity: HDMI, USB, Digital Link, LAN, RS-232C, Crestron Connected™
Control Functions: Art-Net DMX, PJLink™ (Class 2), AMX® DD

Write Review

Reviews

Write Review

Reviews

Be the first to write a review

Ask Question

Questions and Answers

Ask Question

Questions and Answers

Be the first to ask a question

Technical Specifications

Projector Type	1-Chip DLP™ projector
Panel Size	16.5 mm (0.65 in) diagonal (16:9 aspect ratio)
Display Method	DLP™ chip x 1, DLP™ projection system
Number of Pixels	1920 x 1080 pixels (If a signal other than 120 Hz/240 Hz is input, it cannot be displayed at this resolution.)
Light Source	Laser diodes
Light Output	6,000 lm / 6,200 lm (Center)
Time Until Light Output Declines to 50%	20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
Resolution	4K (3840 x 2160 pixels) (With Quad Pixel Drive)
Contrast Ratio	20,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. HDMI signal input)
Screen Size (Diagonal)	1.02–7.62 m (40–300 in), 16:9 aspect ratio
Center-to-Corner Zone Ratio	90%
Lens	2.0x manual zoom (throw ratio: 1.46–2.93:1), manual focus, F 2.0–3.4, f 21.5–43.0 mm
Lens Shift (Vertical)	+71 %, -48 % (manual)
Lens Shift (Horizontal)	+34 %, -27 % (manual)
Keystone Correction Range	Vertical: ±40 °, Horizontal: ±20 °
HDMI IN 1/2	HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input, CEC supported)
COMPUTER IN	D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
MONITOR OUT	D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
AUDIO IN/OUT	M3 stereo mini-jack x 2
SERIAL IN	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
DIGITAL LINK/LAN	RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input, Extron XTP®)
LAN	RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
USB	USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module, for USB memory, and for power supply (DC 5 V, maximum 2 A)
Supported Internet Protocol Versions	IPv4, IPv6
Power Supply	AC 100–240 V, 50/60 Hz; AC 110 V, 60 Hz (Taiwan)
Power Consumption	505 W (5.5–2.4 A) (525 VA)
Operation Noise	36 dB (NORMAL/ECO) / 31 dB (QUIET)
Dimensions (W x H x D)	498 x 168 x 492 mm (19 5/8? x 6 5/8? x 19 3/8?)
Weight	Approx. 16.4 kg (36.2 lbs)
Operating Environment	Operating temperature: 0–45 °C (32–113 °F), operating humidity: 10–80 % (no condensation)
Applicable Software	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Projector Network Setup Software
Control Function via LAN	Crestron Connected™ V2, Crestron XiO Cloud™12, Art-Net DMX, AMX® DD, and PJLink™ (Class 2)
