| Projector type |

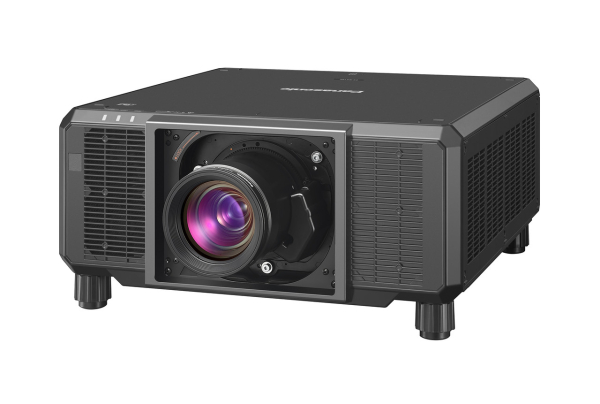

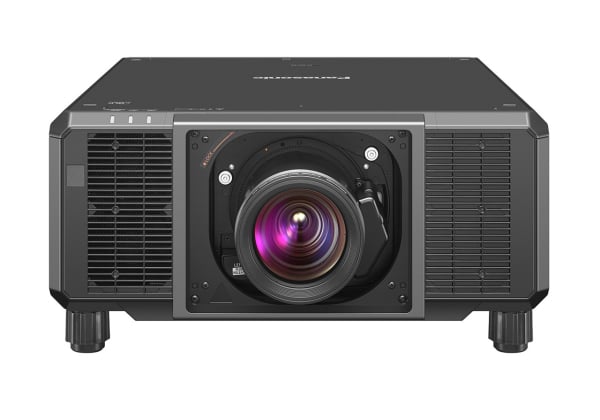

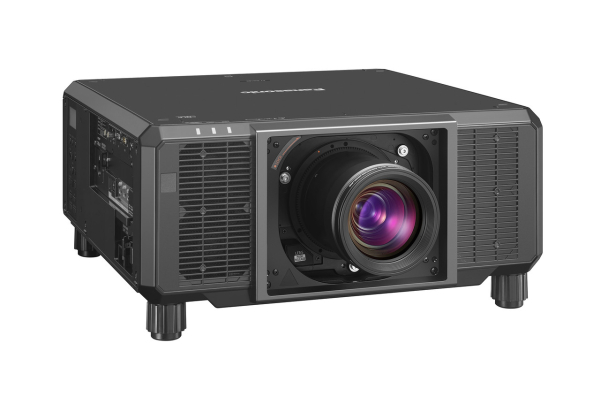

3-Chip DLP projector |
| DLP chip | Panel size (mm) |
20.3 mm (0.8 in) diagonal (16:10 aspect ratio) |
| DLP chip | Panel size (inch) |
20.3 mm (0.8 in) diagonal (16:10 aspect ratio) |
| DLP chip | Number of Pixels |
2,304,000 (1920 x 1200 pixels) x 3 |
| Light Source |
Laser diode |
| Light Output*1 *2 |
16,000 lm / 16,800 lm (Center) |
| Time until light output declines to 50 %*4 |
20,000 hours (NORMAL/QUIET), 24,000 hours (ECO) |
| Resolution |
4K (3840 x 2400 pixels) (Quad Pixel Drive: ON) |
| Contrast Ratio |
25,000:1 (Full On/Full Off, Dynamic Contrast) |
| Screen size (diagonal) (mm) |
1.78–25.40 m (70–1000 in), 1.78–15.24 m (70–600 in) with ET-D75LE8/ ET-D3LET80
3.05–15.24 m (120–600 in) with ET-D75LE95
5.08–15.24 m (200–600 in) with ET-D3LEU100/D3LEW200 |
| Center-to-corner zone ratio |
0.9 |
| Lens |
Optional (no lens included with this model) |
| Lens shift | Vertical(From the origin point of the lens mounter) |
±66 % (±52 % with ET-D75LE6/ET-D3LEW60, +71 % / +93 % with ET-D75LE95, ±66 % with ET-D3LEU100, ±57 % with ET-D3LEW200) (powered) |
| Lens shift | Horizontal(From the origin point of the lens mounter) |
±24 % (±18 % with ET-D75LE6/ET-D3LEW60, ±14 % with ET-D75LE95, -25 % / +30 % with ET-D3LEU100, ±18 % with ET-D3LEW200) (powered) |
| Keystone Correction Range |
Vertical: ±45 ° (± 40 ° with ET-D75LE10/ET-D3LEW10/ET-D75LE20/ET-D3LES20,±28 ° with ET-D75LE6/ET-D3LEW60, ±22 ° with ET-D3LEW50, ±15 ° with ET-D3LEW200, ±8 ° with ET-D3LEU100, +5 ° with ET-D75LE95),Horizontal: ±40 ° (±15 ° with ET-D3LEW50/ET-D75LE6/ET-D3LEW60, ±5 ° with ET-D3LEU100/ET-D3LEW200, 0 ° with ET-D75LE95)When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °. |
| Terminals | HDMI In |
HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input"*5) |
| Terminals | DisplayPort |
DisplayPort x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input"*5) |
| Terminals | Multi Projector Sync In |
BNC x 1 |
| Terminals | Multi Projector Sync Out |
BNC x 1 |
| Terminals | MULTI PROJECTOR SYNC OUT/ 3D SYNC 2 OUT(dual purpose) |
No |
| Terminals | Serial In |
D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | Serial Out |
D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals | REMOTE 1 IN |
M3 stereo mini-jack x 1 for wired remote control |
| Terminals | REMOTE 1 OUT |
M3 stereo mini-jack x 1 for link control (for wired remote control) |
| Terminals | Remote 2 In |
D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | LAN |
RJ-45 x 1 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals | USB |
USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory |
| Terminals | DC Out |
USB Type A x 1 (for power supply, DC 5 V, 2 A) |
| Terminals | Expansion Slot |
Open slot for for function boards, Intel SDM compatible |
| Power Supply |
AC 100 V–120 V / AC 200 V–240 V, 50 Hz/60 Hz (The maximum value of light output is limited to 15,000 lm or less when using the projector with AC 100 V to AC 120 V. Other limitations apply*6 .) |
| Power consumption | Maximum power consumption |
AC 200 V–AC 240 V : 1,190 W (1,220 VA)
AC 100 V–AC 120 V : 1,080 W (1,090 VA) |
| Power consumption | On-mode power consumption (Operating mode)[Normal] |
1,030 W |
| Power consumption | On-mode power consumption (Operating mode)[Eco] |
820 W |
| Power consumption | On-mode power consumption (Operating mode)[Quiet] |
810 W |
| Operation Noise |
43 dB (NORMAL/ECO), 40 dB (QUIET) |
| Dimensions (W x H x D) |
Approx. 550 x 220 x 570 mm (21 5/8"x 8 11/16" x 22 7/16" ) |
| Weight |
Approx. 35 kg (77.2 lbs) |
| Operating Environment |
Operating temperature: 0–45 °C (32–113 °F*9), operating humidity: 10–80 % (no condensation) |
| Applicable software/application |
Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android |
