| Color |
Black |
| Projector type |
1-Chip DLP projector |
| DLP Chip | Panel Size |
17.0 mm (0.67 in) diagonal, 16:10 aspect ratio |
| DLP Chip | Display Method |
DLP chip x 1, DLP projection system |
| DLP chip | Number of Pixels |
2,304,000 (1920 × 1200) pixels |
| Light Source |
Laser diodes |
| Light output |
10,000 lm*1 / 10,500 lm (Center)*2 |
| Time until light output declines to 50 %*3 |
20,000 hours (NORMAL) / 24,000 hours (ECO) |
| Resolution |
4,608,000 pixels / 2715 x 1697 dots * With Smooth Pixel Drive: ON. |
| Contrast Ratio*1 |
10,000:1 (Full On/Full Off) * With [Dynamic Contrast] set to |
| Screen size [diagonal] (mm) |
1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055, 2.54–8.89 m (100–350 in) with ET-DLE035, 16:10 aspect ratio |
| Screen size [diagonal] (inch) |
1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055, 2.54–8.89 m (100–350 in) with ET-DLE035, 2.54–10.16 m (100–400 in) with ET-DLE020, 16:10 aspect ratio |
| Center-to-corner zone ratio*1 |
0.9 |
| Lens |
PT-RCQ10: Powered zoom (throw ratio 1.71–2.41:1), powered focus F 1.7–1.9, f 25.6–35.7 mm
PT-RCQ10L: Optional powered zoom/focus lenses |
| Lens shift*4 | Vertical (from center of screen) |
+50 %, -16 % (+40 %, -16 % with ET-DLE060) (powered) |
| Lens shift*4 | Horizontal (from center of screen |
+30 %, -10 % (+10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085) (powered) |
| Keystone Correction Range |
Vertical: ±40° (±5° with ET-DLE020, ±16° with ET-DLE060, ±22° with ET-DLE105/ET-DLE085/ET-DLE055, +5° with ET-DLE035), Horizontal: ±15° (±10° with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020) |
| Keystone correction range with optional ET-UK20 Upgrade Kit |
Vertical: ±45° (±16° with ET-DLE060, ±40° with ET-DLE150/ET-DLE250/ET-DLE170, ±22° with ET-DLE105/ET-DLE085/ET-DLE055), Horizontal: ±40° (±10° with ET-DLE060, ±15° with ET-DLE105/ET-DLE085/ET-DLE055), When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55°. |
| Installation |
Ceiling/floor, front/rear, free 360-degree installation |

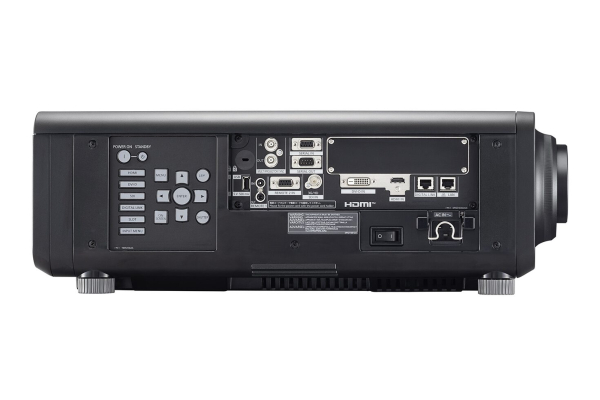

| Terminals | SDI In |
BNC x 1: 3G/HD-SDI input |
| Terminals | HDMI In |
HDMI 19-pin x 1 (Deep Color, compatible with HDCP 2.2, 4K/60p signal input*5 ) |
| Terminals | DVI-D In |
DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) |
| Terminals | Multi Projector Sync In |
BNC x 1 |
| Terminals | Multi Projector Sync Out |
BNC x 1 |
| Terminals | Serial In |
D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | Serial Out |
D-sub 9-pin (male) x 1 for link control |
| Terminals | REMOTE 1 IN |
M3 x 1 for wired remote control |
| Terminals | REMOTE 1 OUT |
M3 x 1 for link control (for wired remote control) |
| Terminals | Remote 2 In |
D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | LAN |
RJ-45 x 1 for network connection, 10Base-T/100Base-TX, compliant with PJLink (Class 2), Art-Net |
| Terminals | DIGITAL LINK |
RJ-45 x 1 for network, DIGITAL LINK connection (HDBaseT compliant), 100Base-TX, compatible with Art-Net, PJLink (Class 2), Deep Color, HDCP 2.2, 4K/60p signal input |
| Terminals | USB |
USB Connector (Type A) x 1 for Cloning/Wireless Module (output 5 V/500 mA) |
| Terminals | Expansion Slot |
Open slot for SLOT NX compatible interface board |
| Power Supply |
AC 100-240 V, 50/60 Hz |
| Power Consumption |
1,100 W |
| Cabinet Materials |
Molded plastic |
| Operation noise |
43 dB (Normal)/40 dB (Quiet 1)/38 dB (Quiet 2) |
| Dimensions (W x H x D) |
PT-RCQ10: 498 x 200*6 x 581 mm (19 19/32" x 7 7/8" *6 x 22 7/8") (with supplied lens) |
| Weight |
PT-RCQ10: Approx. 24.2 kg (53.4 lbs) (with supplied lens) |
| Operating Environment |
Operating temperature: 0–45 °C (32–113 °F)*8 *9 , operating humidity: 10–80 % (no condensation) |
| Applicable Software |
Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android |
